BRAND: TECHNICAL SYSTEMS

Static Relay (Motor Protection Relay)

Model / Product Code: Motor Protection Relay

The Rishabh Protector is designed to monitor the correct phase rotation or sequence of 3 phase system R, Y, B. Rotating machines are particularly vulnerable to incorrect phase sequence.

Download PDF

Product Overview

The Rishabh Protector is designed to monitor the correct phase rotation or sequence of 3 phase system R, Y, B. Rotating machines are particularly vulnerable to incorrect phase sequence.

MPR is an auxiliary relay and it should be used
along with the motor starter only.
The effective working of MPR will depend on efficient
working of electromagnetic motor starter.
Before installing MPR check whether the motor starter
is operating perfectly by starting the motor with"START"
push button and switching it off by "OFF" push button.
Automatic, manual & remote reset available
LED indication for Trip & Power ON
Polycarbonate casing (UL 94 V-0)
Protective clear terminal cover (UL 94 V-0)
For more details please refer datasheet.

Technical Specifications

Product Name Static Relay
Model / Product Code Motor Protection Relay
Category Process Controlled Equipments
Sub-Category Protection & Monitoring Relays
Technical Details

MPR is an auxiliary relay and it should be used
along with the motor starter only.
The effective working of MPR will depend on efficient
working of electromagnetic motor starter.
Before installing MPR check whether the motor starter
is operating perfectly by starting the motor with"START"
push button and switching it off by "OFF" push button.
Automatic, manual & remote reset available
LED indication for Trip & Power ON
Polycarbonate casing (UL 94 V-0)
Protective clear terminal cover (UL 94 V-0)
For more details please refer datasheet.

Need Help With This Product?

Talk To Our Technical Experts

Contact Us

Related Products

Brand: RISHABH

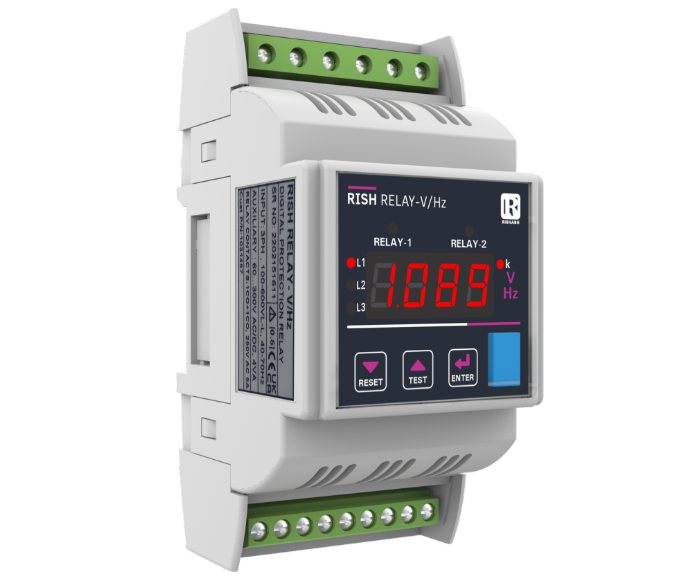

Protective Relay (Combined Under / Over Voltage & Frequency Relay)

The Rishabh combined voltage & frequency Protectors give continuous surveillance of the monitored circuit.

Download PDF
Model: Synchro-check Relay

Static Relay (Synchro-check Relay)

The Synchro- check relay can be used to assist in the semiautomatic paralleling of two ac power systems. The Rishabh Paralleling protector provides manual / automatic switching of generator to busbar without damage or disturbance to the system.

Download PDF
Brand: RISHABH

Temperature Trip Relay (Hot- Spot 3 Relay)

The Rishabh temperature trip relay has been designed to monitor three separate temperature zones in large electric motors, transformer winding or any temperature conscious equipment such as process lines gas turbines or engine driven generating sets, usin

Download PDF
Brand: RISHABH

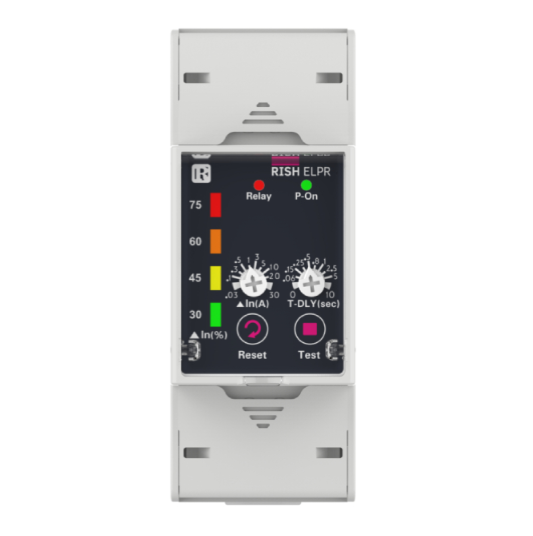

Static Relay (Earth Fault Relay)
