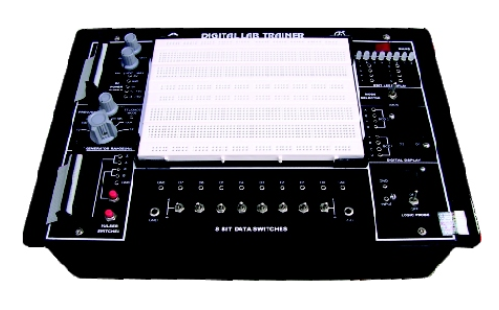

Digital Lab Trainer (Bread Board Model) (ME 1154)
Advanced lab trainer for students to perform more than 50 experiments of digital electronics

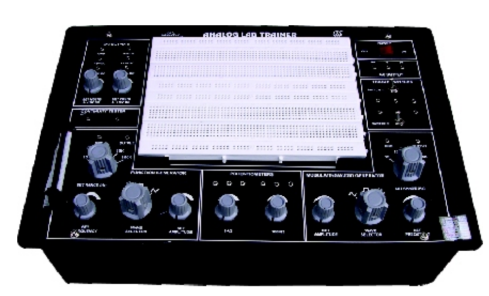

Analog Lab Trainer (Bread Board Model) (ME 1153)
Advanced lab trainer for students to perform more than 50 experiments of analog electronics
Analog & Digital Lab Trainer (Bread Board Model) (ME 1155)
Advanced lab trainer for students to perform more than 100 experiments of analog & digital electronics

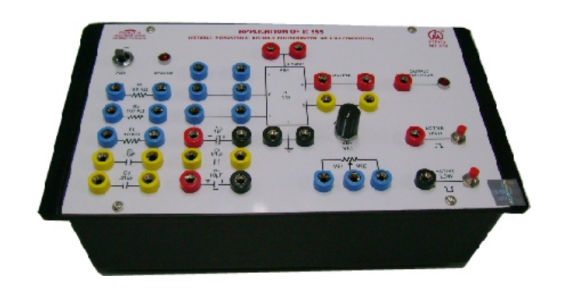

Application of IC 555 (ME 650)
kit for IC 555 Timer circuit applications has been designed to perform the following experiments:- A. Astable Multivibrator B. Monostable Multivibrator C. Bistable Multivibrator D. Voltage to Time convertor / Voltage to Frequency convertor
Biasing of Transistor As Class 'A' Amplifier (ME 623)
Biasing of Transistor as Class

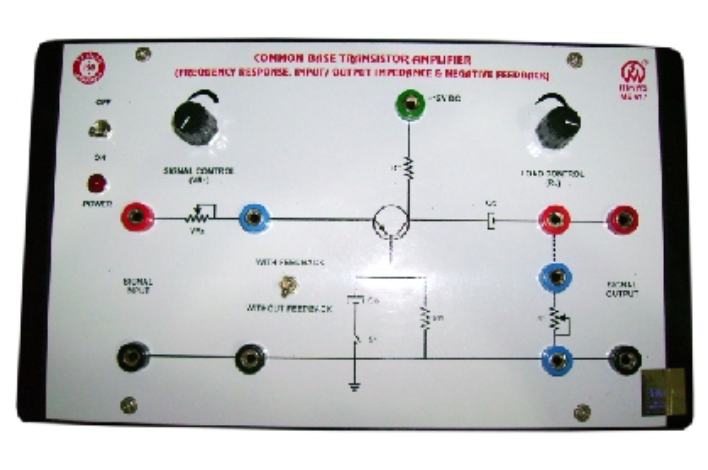

Common Base Transistor Amplifier (ME 617)
Common Base Transistor Amplifier apparatus with and without Negative Feed Back has been designed to study the following :- A. Frequency Response / Output Voltage Gain. B. Input Impedance. C. Output Impedance. D. Effect of Negative Feed Back on Output Gain

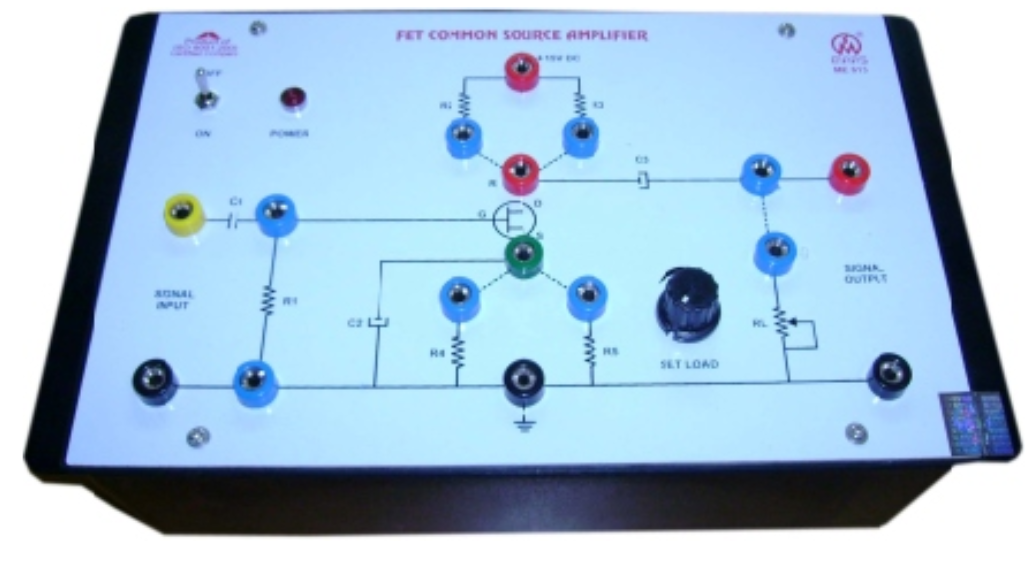

FET Common Source Amplifier (ME 613)
FETCommon Source Amplifier has been designed to study the Voltage Gain, Input Impedance, Output Impedance & Frequency Response of a Common Source FETAmplifier.

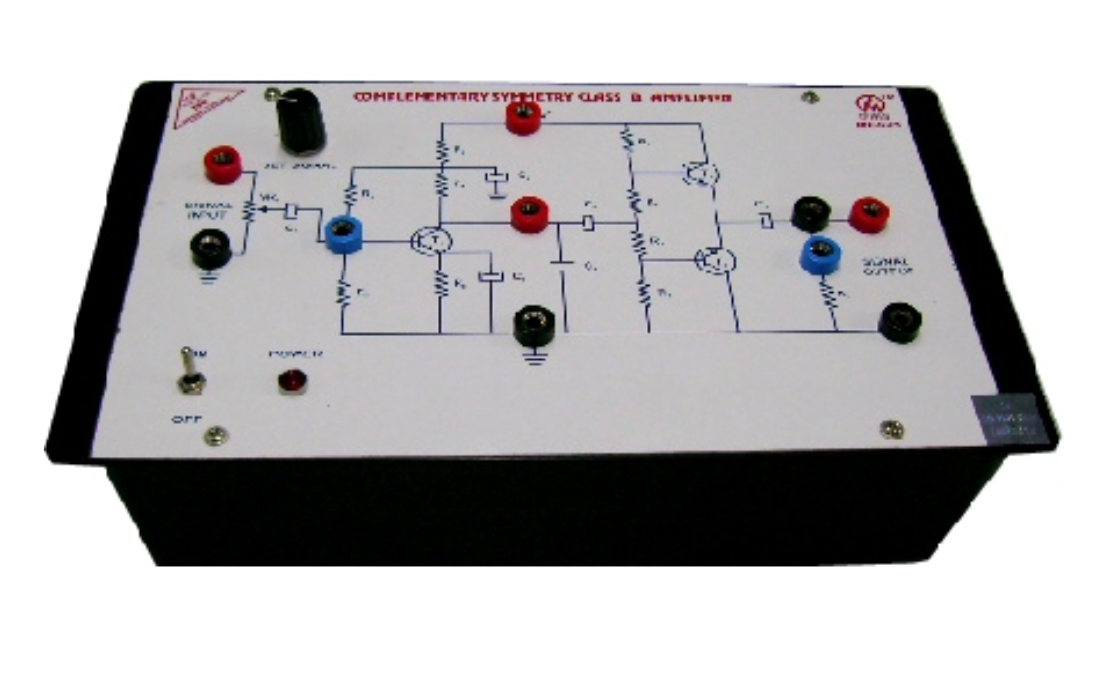

Complementary Symmetry Amplifier (ME 621)
Complementary Symmetry Amplifier has been designed to study the frequency response, output gain and output power of a Complementary Symmetry Amplifier

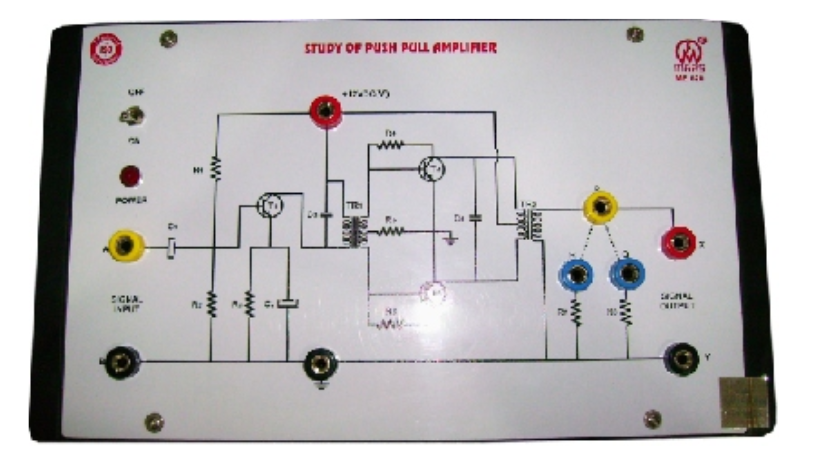

Push-Pull Amplifier (ME 620)
Push-Pull Amplifier Apparatus has been designed to study the Output Gain, Output Power and Frequency Response of a Push Pull Amplifier

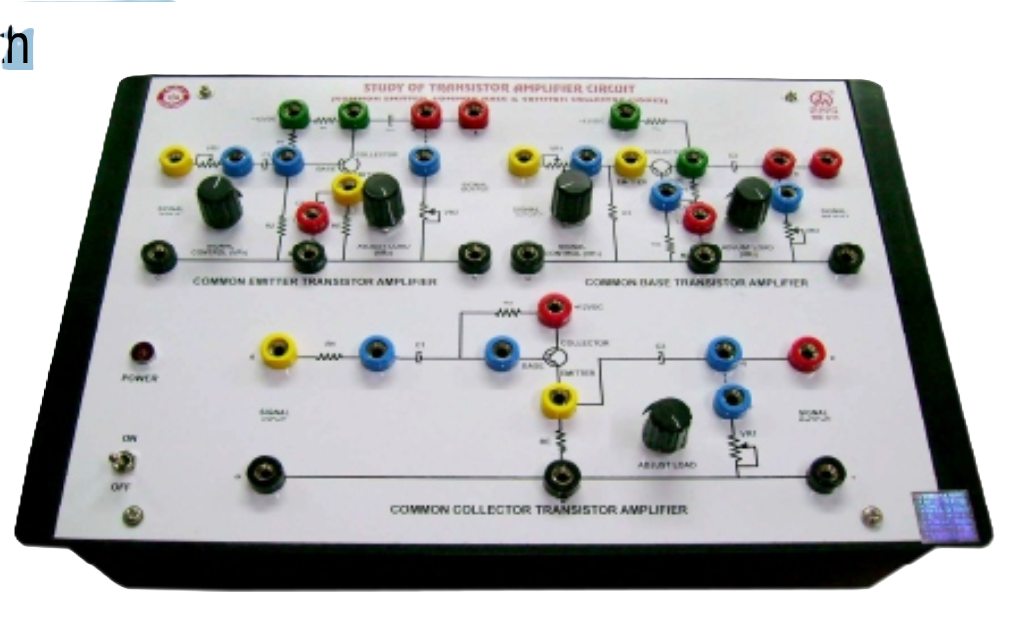

Study of Transistor Amplifier Circuits (With in Common Base, Common Emitter & Common Collector Mode) (ME 611)
Transistor Amplifier Circuits has been designed to plot the frequency response and to measure the following: A. EffectofFeed-Back onoutputinCommonBase&CommonEmitter Amplifier. B. Input Impedance C. Output Impedance D. Band Width E. Gain

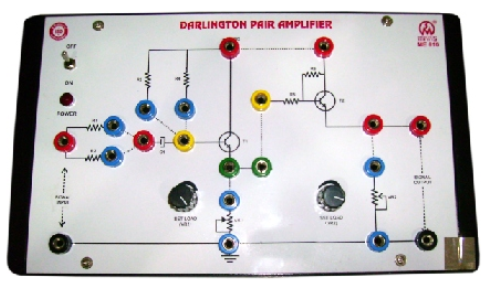

Darlington Pair Amplifier (ME 610)
Darlington Pair Amplifier has been designed to study the following : A. Output Voltage Gain. B. Output Impedance. C. Output Power.
