Three Phase Half Controlled Bridge Converter with R&RL Load (ME 801)
To observe and study line commutation principle in a three phase half controlled Bridge convertor using R & RL Load
DC Motor Speed Control using SCR (ME 800)
To study and control speed of a DC Motor in SCR based circuit using RC triggering.
Single Phase Half wave, Full wave & Fully Controlled Bridge Rectifier/ Converter using SCR's (ME 799)
Objective: To study single phase half wave, full wave & fully controlled bridge rectifier/converter using SCR's & observe wave form on CRO.
Step Up Chopper (ME 798)
To study stepping up of DC voltage by change in duty cycle of the pulse at the gate of MOSFET

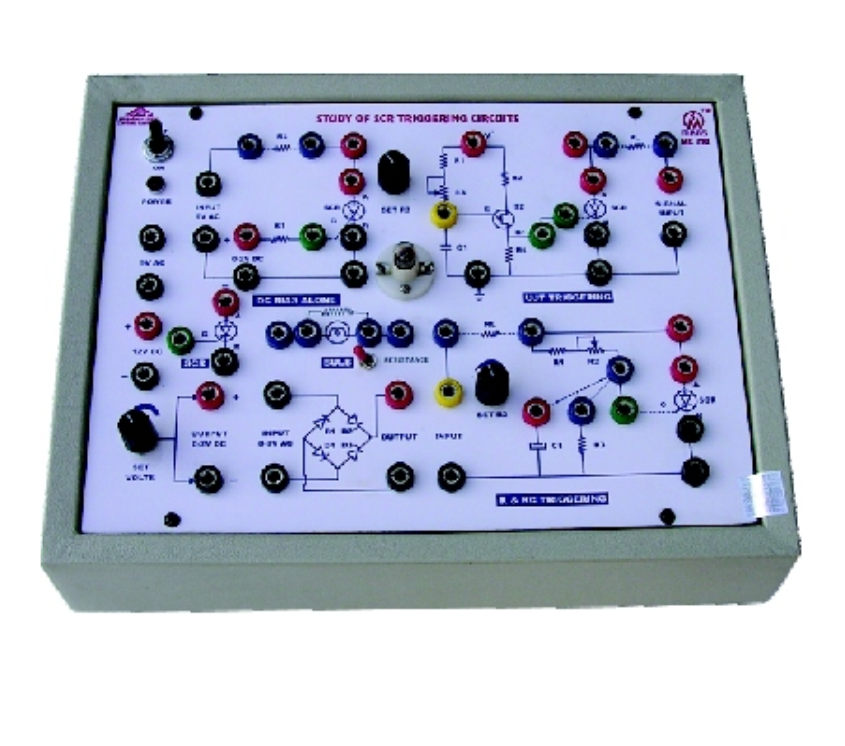

SCR Firing Circuit (ME 792)
SCR Firing Circuit designed to study various type of firing circuit & observe waveforms on CRO.
Light Intesity Control Using SCR’s (ME 791)
Designed to study light dimmer circuit using SCR & TRIAC.
SCR Commutation Techniques (ME 793)
To study various commutation techniques (A,B,C,D,E and F)
