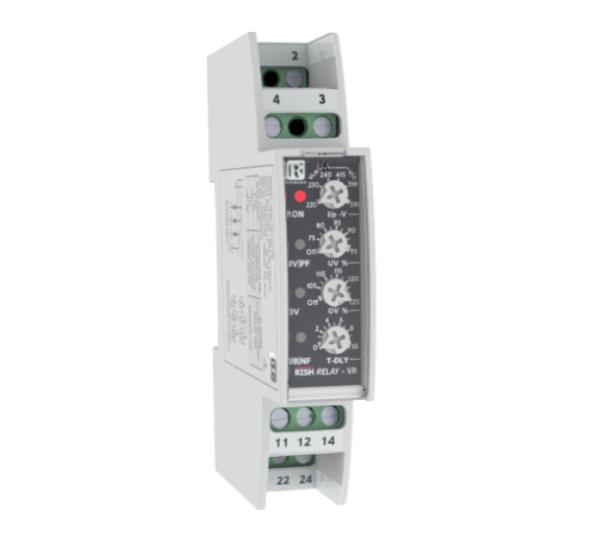

Protective Relay (AC Voltage Relay with Adjustable Time delay)

Model / Product Code: AC Voltage Relay with Adjustable Time delay

The Rishabh a.c. Voltage Protectors provide continuous surveillance of the monitored circuit.

Download PDF

Product Overview

The Rishabh a.c. Voltage Protectors provide continuous surveillance of the monitored circuit.

An AC voltage relay with an adjustable time delay
provides continuous surveillance of a circuit.
When the monitored voltage moves outside the
setpoint limit, the relay will operate after
the selected time delay, giving an alarm
and/or initiation signal.
Adjustable setpoint
Adjustable Time Delay
Internal differential (factory Settable)
2 pole relay contacts
Energize/De-energize function swapping
For more details please refer datasheet.

Technical Specifications

Product Name Protective Relay
Model / Product Code AC Voltage Relay with Adjustable Time delay
Category Process Controlled Equipments
Sub-Category Protection & Monitoring Relays
Technical Details

An AC voltage relay with an adjustable time delay
provides continuous surveillance of a circuit.
When the monitored voltage moves outside the
setpoint limit, the relay will operate after
the selected time delay, giving an alarm
and/or initiation signal.
Adjustable setpoint
Adjustable Time Delay
Internal differential (factory Settable)
2 pole relay contacts
Energize/De-energize function swapping
For more details please refer datasheet.

Need Help With This Product?

Talk To Our Technical Experts

Contact Us

Related Products

Model: Phase Balance Relay

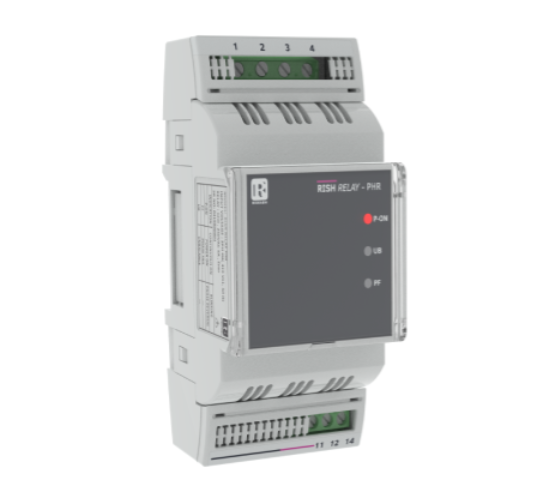

Static Relay (Phase Balance Relay)
