Advance Communication Lab Training Module (ME 776)
Signal Sampling & Reconstruction technique. Effect on amplitude of reconstructed signal by varying sampling pulse duty cycle in sample & sample/hold output
Advance Communication Lab Training Equipment (ME 775)
Conversion of different data formats to NRZ data formats ASK, FSK, BPSK, DPSK, & QPSK carrier demodulation techniques.
Advance Communication Lab Training Module (ME 774)
Conversion of NRZ data to other data formats NRZ (L), NRZ(M) RZ, AMI, RB, Biphase (Manchester), Biphase (MARK), Differentially encoded dibit pair. To study ASK, FSK, BPSK, DPSK, & QPSK carrier modulation techniques & their comparison.
Advance Communication Lab Training Module (ME 772)
: Observe Pulse Code Modulation, Analog to Digital Convertor parallel to serial data conversion, Time Division Multiplexing of PCM data & Error check codes
Advance Communication Lab training Module (ME 773)
Observe Time Division Demultiplexing of PCM data. Clock regeneration by PLL & signal recovery in 3 connecting modes between Transmitter and Receiver
Advance Communication Lab Training Modules (ME771)
Delta, Adaptive Delta & Delta Sigma Modulation & Demodulation

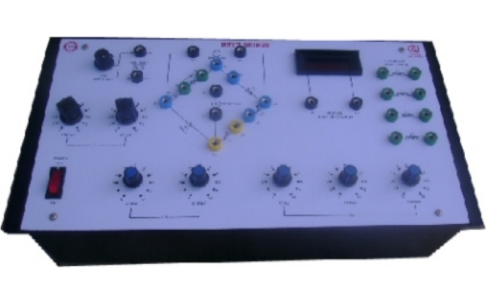

Hay’s Bridge (ME 2209E)
Used To calculate the value of unknown inductance (20mH - 100mH).

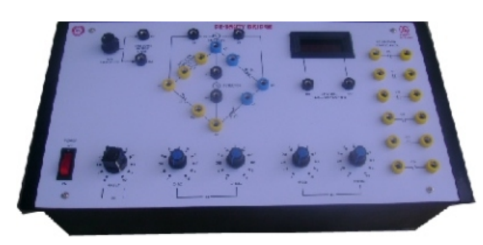

De-Sauty Bridge (ME 2208E)
To calculate the value of unknown capacitor (0.047mF - 1mF) in term of capacitance.

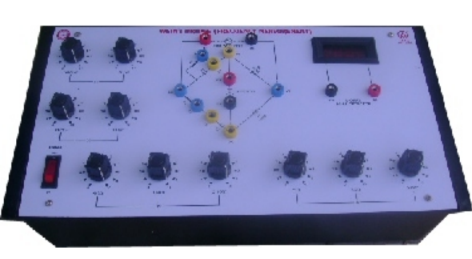

Wein’s Bridge (Frequency Measurement) (ME 2206E)
Used To calculate the value of frequency (500Hz - 100KHz)

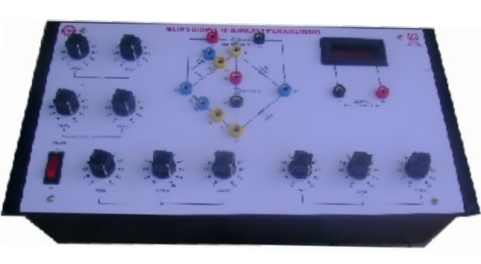

Wein’s Bridge (Capacity Measurement) (ME 2205E )
Used To calculate the value of capacitor (0.033 mF - 1mF).

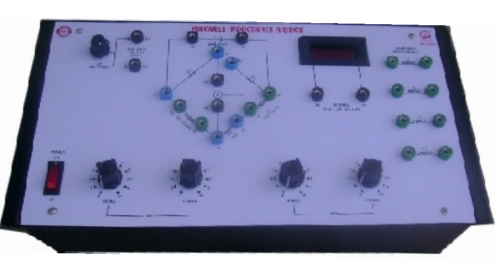

Maxwell Inductance Bridge (ME 2204E)
To calculate the value of inductance (500mH - 10mH).

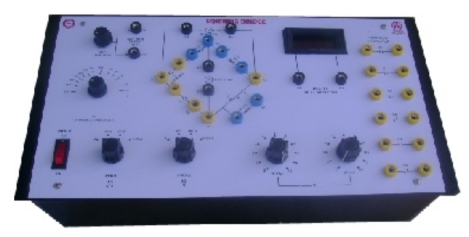

Schering Bridge (ME 2201E)
On Board six unknown capacitor are mounted behind the front panel with connections are brought out on front panel.
