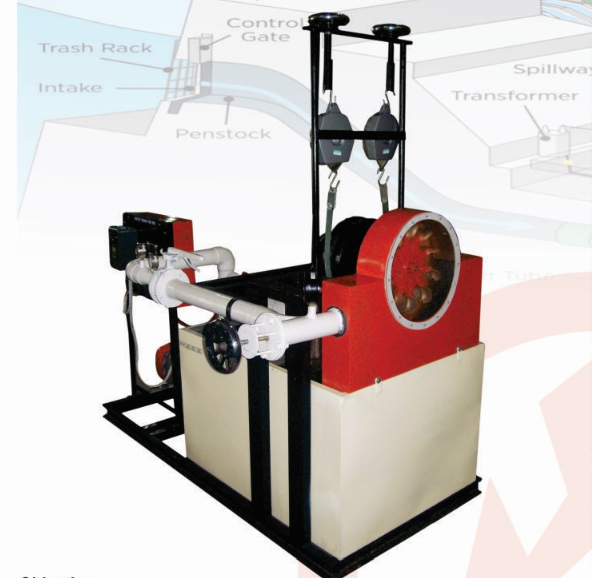

Pelton Turbine Test Rig (GN 7275)
To study the operation of a pelton wheel turbine
Francis Turbine Test Rig (GN 7278)
To study the operation of a francis turbine To determine the output power of francis turbine To determine the turbine efficiency
Reciprocating Pump Test Rig (GN 7265)
To find the efficiency of reciprocating pump Reciprocating Pump type: Double acting cylinder RPM: 320 DC Motor: 1HP
Centrifugal Pump Test Rig (Double Stage) (GN 7263)
Study of centrifugal pump characteristics when -Pumps are connected in series -Pumps are connected in parallel

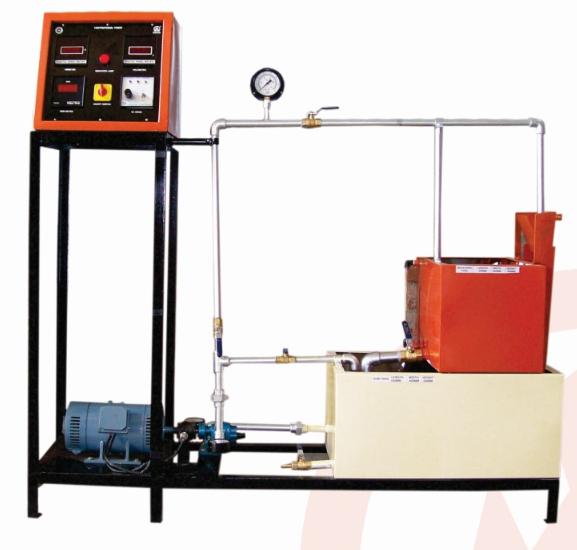

Centrifugal Pump Test Rig (Single Stage (GN 7262)
To determine total head, pump uutput, overall efficiency and pump efficiency of the centrifugal pump
Darcy's Law Apparatus (GN 7252)
To study the friction in different pipes and different diameters
Centre of Pressure (Hydrostatic Force) Apparatus (GN 7250)
L shaped submerged body 100mm x 100mm x 200mm, leak proof made of

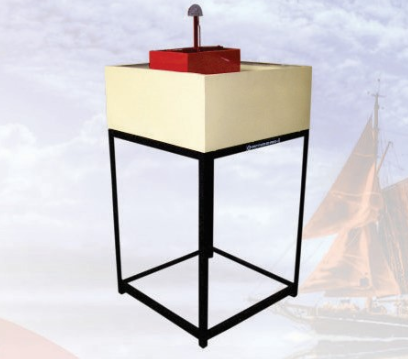

Metacentric Height Apparatus (GN 7247)
To determination of the metacentric height and position of the metacentric height with angle of heel of ship model
Piezometer Tube Apparatus (Capillary Tube Viscometer (GN 7242)
To study piezometer tube for water level measurement
Free & Forced Vortex Apparatus (GN 7240)
To find the surface profile in a free vortex flow
