AC Clamp Meter - CM3281 - HIOKI
Product Overview

Large Jaw Lets You Clamp with Ease,
Measure thick cables right at the terminal
AC Current range:42.00 to 2000 A,3 ranges
Basic accuracy 50-60 Hz:±1.5% rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy 45-66 Hz:±1.8% rdg. ±7 dgt.
Power supply:Coin type lithium battery(CR2032) ×1,120 hours
For more details refer datasheet.

AC Clamp Meter - CM3291 - HIOKI
Product Overview

Large Jaw Lets You Clamp with Ease,
Measure thick cables right at the terminal
AC Current range:42.00 to 2000 A,3 ranges
Basic accuracy 45-66 Hz: ±1.5% rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.(at 4.2 V range)
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt.
Power supply:Coin type lithium battery (CR2032) ×1,70 hours
For more details refer datasheet.

AC Clamp Meter - CM3286-50 - HIOKI
Product Overview

Quickly Check Current, Voltage, Power,and Power Factor
Detect Electricity Theft and Meter Tampering
AC voltage range:80.0 V to 600.0 V, Single range,
Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt.
Frequency characteristics: 45 to 1 kHz, True RMS
AC current range:0.060 A to 600.0 A,3 range,
Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt.
Frequency characteristics: 45 to 1 kHz, True RMS
Power range:0.005 kW to 360.0 kW
For more details refer datasheet.

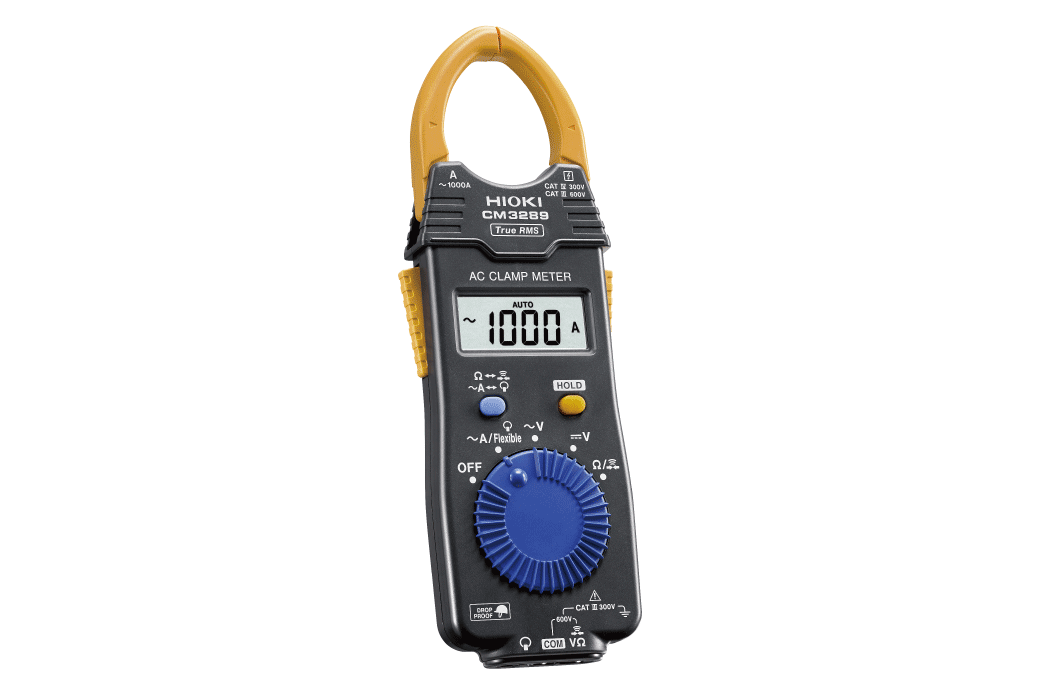

AC Clamp Meter - CM3289 - HIOKI
Product Overview

Quickly clamp wires in even more confined spaces!
AC Current range:42.00 to 1000 A,3 ranges
Basic accuracy:±1.5 % rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy:±1.0 % rdg. ±3 dgt.
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy:±1.8 % rdg. ±7 dgt.
Crest factor:2.5 or less at 2500 counts
Resistance range:420.0 Ω to 42.00 MΩ,6 ranges,
For more details refer datasheet.

AC Leakage Clamp Meter - CM4001 - HIOKI
Product Overview

Leakage Current Meter with Remarkable Ease of Use
Double Your Work Speed with Innovative Jaw Design
AC Current range:60.00 mA/600.0 A,5 ranges
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt
Guaranteed accuracy: from 0.60 mA to 600.0A
Frequency range    40.0 Hz to 999.9 Hz
Crest factor    4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)
Output function    N/A
For more details refer datasheet.

AC Leakage Clamp Meter - CM4002 - HIOKI
Product Overview

Prevent unexpected downtime!
Identify potential problems and avoid large problems
AC Current range:6.000 mA, 60.00 mA, 600.0 mA,
6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz-400 Hz: ±1.0% rdg ±5 dgt
Basic accuracy 15 Hz-45 Hz,400 Hz-2 kHz:±2.0%rdg±5dgt
Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range    N/A
Frequency range    15.0 Hz to 2000 Hz
For more details refer datasheet.

AC Leakage Clamp Meter - CM4003 - HIOKI
Product Overview

Prevent unexpected downtime!
Identify potential problems and avoid large problems
AC Current range:6.000 mA,60.00 mA,600.0 mA,6.000 A,
60.00 A,200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz-400 Hz:±1.0%rdg±5 dgt
Basic accuracy 15 Hz-45 Hz,400 Hz-2kHz:±2.0% rdg ±5 dgt
Defined accuracy range:0.060mA to 200.0A
AC Voltage range:N/A
Frequency range:15.0 Hz to 2000 Hz
For more details refer datasheet.

AC Clamp Meter - CM4141-50 - HIOKI
Product Overview

True RMS 2000 A AC Clamp Meter
AC Current range:60.00 A to 2000 A,3ranges,
Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A
Crest factor:For the 60.00 A range: 2.5
(greater than 50.00 A and less than or equal to 60.00 A)
to 2000 A range: 1.5 (2000 A or less)
DC Voltage range:600.0 mV to 1000 V
AC Voltage range    6.000 V to 1000 V,4ranges
Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V)
For more details refer datasheet.

AC/DC Clamp Meter - CM4371-50 - HIOKI
Product Overview

True RMS 600 A AC/DC Clamp Meter
With DMM Functions that Deliver Top Safety
DC Current range:20.00A/600.0 A,
Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
AC Current range:20.00 A/600.0 A
Basic accuracy:45-66 Hz: ±1.3% rdg.
Crest factor:20.00 A range: 7.5
600.0 A range: 3 or less
DC+AC Current range:20.00 A/600.0 A
For more details refer datasheet.

AC/DC Clamp Meter - CM4373-50 - HIOKI
Product Overview

True RMS 2000 A AC/DC Clamp Meter
With DMM Functions that Deliver Top Safety
DC Current range:600.0 A/2000 A,
Basic accuracy:±1.3% rdg.
AC Current range:600.0 A/2000 A
Basic accuracy 45 - 66 Hz:±1.3% rdg. ±0.3 A
Crest factor 600.0 A range:3 or less
2000 A range:2.84 or less
DC+AC Current range:600.0 A/2000 A
For more details refer datasheet.

AC/DC Clamp Meter - CM4375-50 - HIOKI
Product Overview

True RMS 1000 A AC/DC Clamp Meter
Easily Get Into Tight Spaces-Innovative Jaw
DC Current range:1000 A,
Basic accuracy:±1.3% rdg.±0.3 A
AC Current range:1000 A,
Basic accuracy 45-66 Hz:±1.8% rdg.
Crest factor:1000 A range: 1.5
DC+AC Current range    1000 A
Basic accuracy DC, 45-66 Hz: ±1.3% rdg.
For more details refer datasheet.

Display Unit - CM7291 - HIOKI
Product Overview

Multi-functional Receiving and Display Unit to Use
Output to Advanced Recorder or Logger
Measurement parameters:DC,AC,DC+AC,Hz
Crest factor:3at 5000 count
Output method:WAVE, RMS, PEAK, FREQ
Input connectors:HIOKI PL 14
PEAK sensing duration:2 ms or greater
Other functions    Auto range,Zero adjustment at power-up,
Analysis display, Filter, Output amplification,
For more details refer datasheet.

Display Unit - CM7290 - HIOKI
Product Overview

Multi-functional Receiving/Display Unit to Use
Output to Advanced Recorder or Logger
Measurement parameters:DC,AC,DC+AC,Hz
Crest factor:3 at 5000 count
Output method:WAVE, RMS, PEAK, FREQ
Input connectors:HIOKI PL 14
PEAK sensing duration:2 ms or greater
Other functions    Auto range,Zero adjustment at power-up,
Analysis display, Filter, Output amplification,
For more details refer datasheet.

AC Clamp Meter - 3280-10F - HIOKI
Product Overview

Essential Equipment for Professional Electricians
Measure Current and Voltage with a Single Instrument
AC Current range:41.99 to 1000 A,3 ranges,
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor:N/A
For more details refer datasheet.

Clamp On AC/DC HiTester - 3287 - HIOKI
Product Overview

One-Touch Maintenance on All Types of AC/DC Equipment
DC Current range:10.00/ 100.0 A,
Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range:10.00/ 100.0 A
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges
Basic accuracy: ±2.3 % rdg. ±8 dgt.
For more details refer datasheet.

Clamp On AC/DC HiTester - 3288-20 - HIOKI
Product Overview

One-Touch Maintenance on All Types of AC/DC Equipment
DC Current range:100.0/ 1000 A,
Basic accuracy:±1.5 % rdg. ±5 dgt.
AC Current range:100.0/ 1000 A,
Basic accuracy:±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy:±1.3 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
For more details refer datasheet.

Clamp On Earth Tester - FT6380-50 - HIOKI
Product Overview

Clamp-On Ground Resistance Tester with Super Slim Jaw
Earthing resistance range:0.20Ω to 1600Ω,10ranges
Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current range:20.00mA to 60.0A,5ranges,
Zero suppression: Less than 0.05 mA,
Accuracy: ±2.0 % rdg. ±0.05 mA
Crest factor 5.0 or less
Memory function:2000 data
For more details refer datasheet.

Clamp Meter - 27-AUTO BL - MECO
Product Overview

3½ Digits 2000 Counts Auto Ranging Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 20MΩ
Audible Continuity
Diode Test
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
For more details refer datasheet

Clamp Meter - 27T-AUTO BL - MECO
Product Overview

3½ Digits 2000 Counts Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 20MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Clamp Meter - 54+ - MECO
Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 4mF
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
Low Battery Indication
Jaw Opening: Cable Dia.30mm (max.)
For more details refer datasheet

Clamp Meter - 72-AUTO BL - MECO
Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Frequency upto 1MHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Clamp Meter - 72T-AUTO BL - MECO
Product Overview

3¾ Digits 4000 Counts TRMS
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Frequency upto 1MHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Clamp Meter - 90+ - MECO
Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 4mF
Frequency upto 4KHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Clamp Meter - 18 SMART - MECO
Product Overview

3½ Digits 2000 Counts Smart Digital clamp Meter
Auto Selection of ACA, ACV, DCV
AC Current upto 400A (Auto Ranging)
AC Voltge upto 600V (Auto Ranging)
DC Voltge upto 600V (Auto Ranging)
Resistance upto 20MΩ (Auto Ranging)
Data Hold for Resistance & Continuity
Hand Free Operation without Rotary Switch
Tool Kit Friendly Size
Low Battery Indication
Jaw Opening :Cable Dia. 25mm (max.)
For more details refer datasheet

Clamp Meter - DTT266 - MECO
Product Overview

3½ Digits 2000 Counts Digital Clamp Meter
Manual Ranging
AC Current upto 1000A (50Hz ~ 60Hz)
AC Voltage upto 750V (45Hz ~ 450Hz)
DC Voltage upto 1000V
Resistance upto 20KΩ
Over Load Protection
Over Volt Protection
Audible Continuity
Low Battery Indication
Jaw Opening: Cable Dia.53mm (max.)
For more details refer datasheet

Clamp Meter - 2502T-AUTO BL - MECO
Product Overview

3½ Digits 2000 Counts TRMS Digital Clamp Meter
Auto / Manual Ranging
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Clamp Meter - 2520THZ-AUTO BL - MECO
Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Capacitance upto 600µF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99%
Resistance upto 60MΩ
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Clamp Meter - 1008-TRMS - MECO
Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Capacitance upto 600µF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99%
Resistance upto 60MΩ
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Clamp Meter - 2250-HZ AUTO - MECO
Product Overview

3¾ Digits 4200 Counts Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Resistance upto 40MΩ
Frequency upto 9.999MHz
Duty Cycle 1% ~ 90%
Audible Continuity
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia.55mm (max.)
For more details refer datasheet

Clamp Meter - 36-AUTO BL - MECO
Product Overview

3 5/6 Digits 6000 Counts TRMS clamp Meter
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 60mF
Frequency upto 1MHz
Duty Cycle 0.1% ~ 99.9%
Resistance upto 60MΩ
Torch Light for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Clamp Meter - 99+ - MECO
Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 100mF
Frequency upto 100KHz
Duty Cycle 0.1% ~ 99.9%
Resistance upto 60MΩ
Torch Light for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Clamp Meter - 3690 AUTO - MECO
Product Overview

3¾ Digits 4000 Counts Clamp Meter
Auto / Manual Ranging
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 40MΩ
Frequency upto 500KHz
Duty Cycle 1% ~ 90%
Δ Zero Button (for DCA)
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Clamp Meter - 3600+ - MECO
Product Overview

3¾ Digits 4200 Counts Clamp Meter
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 1200A
AC Current upto 1000A
Resistance upto 40MΩ
Capacitance upto 40µF
Frequency upto 9.999MHz
Duty Cycle 10% ~ 90%
Audible Continuity
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 55mm (max.)
For more details refer datasheet

Clamp Meter - 1080-TRMS - MECO
Product Overview

3-5/6 Digits 6000 Counts TRMS Clamp Meter
Auto / Manual Ranging
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 1200A
AC Current upto 1200A
Resistance upto 60MΩ
Capacitance upto 9.999mF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99.9%
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Clamp Meter - 2003A+ - MECO
Product Overview

3½ Digits 1999 Counts Clamp Meter
Auto & Manual Ranging
AC & DC Current upto 2000A
AC & DC Voltage upto 2000V
Resistance upto 20MΩ
Audible Continuity
Inrush Current
Backlight Display
Torchlight for Clamp
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 55mm (max.)
For more details refer datasheet

Leakage Current Tester - 4671 - MECO
Product Overview

Meco 4671 is a Leakage Current Tester
10µA Ultra High Resolution
Large Conductor Diameter(30mm)
AC Current in 5 Ranges(40mA,400mA,4A,40A,60A)
Wide Frequency Response(40Hz-1KHz)
ACA, ACV, Ω and Continuity
Large 3¾ Digit LCD (4000 Count)
40 Segment Fast Bargraph Display (20 times/sec.)
Data Hold and Max / Min Hold
Relative Measurement
600 Vrms Overload Protection in Resistance Range
For more details refer datasheet

Leakage Current Tester - 4671A - MECO
Product Overview

Meco 4671A is a Leakage Current Tester
10µA Ultra High Resolution
Large Conductor Diameter (30mm)
AC Current in 4 Ranges (20mA, 200mA, 2A, 60A)
Wide Frequency Response (40Hz-400Hz)
AC A, AC V, DC V
Large 3½ Digit LCD (1999 Count)
Data Hold
Low Battery Indication
Auto Power Off
For more details refer datasheet

Clamp Meter - RISH Clamp ES 400/1000 AC - RISHABH
Product Overview

RISH Clamp ES1000 AC/ES400 AC is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
AUTO POWER OFF
Relative Measurement
Hold Function
Hz / Duty
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Clamp Meter - Rish Clamp 300/1000A AC - RISHABH
Product Overview

Rish clamp 1000A/300A is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
AUTO POWER OFF
Relative Measurement
Hold Function
Hz / Duty
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Clamp Meter - RISH Clamp 1000A/300A AC/DC - RISHABH
Product Overview

RISH Clamp 1000A/300A AC/DC is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
Auto Power Off
Continous On Mode
DATA Hold Function
MIN,MAX Function
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Clamp Meter - RISH Clamp Power 1000A/400A AC/DC - RISHABH
Product Overview

RISH Clamp POWER 1000A/400A measures,
calculate and displays important electrical parameters
of single phase or three phase power system. It also
features Resistance, continuity, diode
and non contact voltage detection
AC&DC Voltageupto1000V
AC&DCCurrent upto 1000A/400 A
Inrush/Peak ValueMeasurement
Active,Reactive andApparentPower
Horse PowerMeasurement
Measure up to49thHarmonics
PhaseAngle
For more details please refer datasheet.

Smart Leakage Clamp Meter - ALCT 66A AC - RISHABH
Product Overview

Agam ALCT 66 A is a high-accuracy
high sensitivity leakage current clamp meter
Suitable for applications in Utilities,Railways,
Communication industry,Oil fields,Building wiring Segment,
Processing industries, etc
Compact size leakage clamp meter
Current measurement from 1µA to 60A
Large jaw opening
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for reportsrmonics
For more details please refer datasheet.

Smart Leakage Clamp Meter - ALCT 606A AC - RISHABH
Product Overview

Agam ALCT 606A AC is a high-accuracy
high sensitivity leakage current clamp meter
Suitable for applications in Utilities,Railways,
Communication industry,Oil fields,Building wiring Segment,
Processing industries, etc
Compact size leakage clamp meter
Current measurement from 0.1mA to 600A
Large jaw opening
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for reports
For more details please refer datasheet.

Smart Leakage Clamp Meter - ALCT 60A AC/DC - RISHABH
Product Overview

ALCT 60A is designed for on-line measurement
of AC/DC leakage current, which adopts latest
CT and digital integration technology.
Lean clamp is suitable for cables such as,
automation panels, control panels, electric metering system,
high-speed rail system, automobile circuit maintenance .
Compact size leakage clamp meter for easy portability
Current measurement from 1mA to 60A AC/DC
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for online reports generation
For more details please refer datasheet.

Clamp Meter - Rish Clamp Solar - RISHABH
Product Overview

RISH Clamp SOLAR has DC voltage measurement upto 1500V DC,
to measure inverter input voltage at solar power plants
and current measurement upto 1500 A  AC/DC.
Measurement range upto 1500V DC to check solar inverter input voltage
Extended current range upto 1500A AC (Trms)/DC for
measurement at high current carrying applications
Patented trigger at back side so as to keep a
safe distance from loads and offer operational efficiency
Double mould casing to offer higher grip while holding the meter
Consists of AC voltage upto 1000V (Trms), resistance, continuity,
capacitance, frequency, diode, duty cycle, temperature, etc.
Complies with CE, IP 50, CAT IV 600V protection
For more details please refer datasheet.

Clamp Meter and Thermal Imaging Camera - FLIR CM276 - FLIR
Product Overview

The FLIR CM276 clamp Meter Combines thermal imaging
with electrical measurement for inspecting
and troubleshooting electrical systems,
solar panels, pumps, and motors.
Through IGM™ (Infrared Guided Measurement),
the CM276 provides a reliable way to identify h
ot spots and overloaded circuits from a safe distance.
IR Resolution:160 × 120 (19,200 pixels)
Display Size:2.4 in, TFT screen
Jaw Opening    :35 mm (1.37 in)
For more details please refer datasheet.

Flexible Clamp Meter - CM57-2 - FLIR
Product Overview

The FLIR CM57-2 is a flexible clamp meter
designed for difficult current measurements.
With its 18-inch (45.72 cm) flexible coil clamp,
the CM57-2 allows you to take measurements in tight
spots, making it ideal for multiple-conductor
measurements and double-wrap requirements.
The meter also features dual LED work lights
for better visibility, and AC current
ranges from 30.00 A to 3000 A.
Basic AC current accuracy (of reading):±3.0% + 5 digits
Display Rate:2 times per second
Flex Coil Length:45 cm (18 in)
Flex Coil Tip Diameter:13 mm (0.5 in)
Inrush Current  Minimum :0.5 A, 100 mS
For more details please refer datasheet.

True RMS Power Clamp Meter (Wireless) - FLIR CM85-2 - FLIR
Product Overview

The FLIR CM85-2 is an industrial power clamp meter
with advanced power analysis and variable frequency
drive (VFD) filtering functions required by
electrical troubleshooters for full-scale equipment.
Accurately analyze voltage in complex machinery by
including harmonics, inrush, current, and
phase rotation testing with a wide
AC/DC voltage range and base accuracy of ±1%.
Capacitanc:
3.999 μF, ±(1.9% + 8 digits)
39.99 μF, ±(1.9% + 8 digits)
For more details please refer datasheet.

Clamp Meter with Datalogging (Wireless) - FLIR CM275 - FLIR
Product Overview

The FLIR CM275 clamp meter combines thermal imaging
with electrical measurement into powerful inspection,
troubleshooting, and diagnostic tools.
Through Infrared Guided Measurement (IGM),
the CM275 provides a reliable way to identify
hot spots and overloaded circuits from a safe distance.
Confirm your findings with the clamp meter’s wide range
of functions plus temperature readings.
IR Resolution:160 × 120 (19,200 pixels)
Display Size:2.4 in TFT screen
AC/DC Voltage:Range 1000V / Basic Accuracy ±1.0%
AC Current:Range 600.0A / Basic Accuracy ±2.0%
For more details please refer datasheet.

True RMS Clamp Meter - FLIR CM44 - FLIR
Product Overview

The FLIR CM4X Clamp Meter Family includes
three professional and affordable True RMS
meters designed for commercial and residential
electricians. The CM42 and CM44 feature AC clamp
measurement, and the CM46 offers both AC/DC measurement
to meet your unique needs. Each meter is equipped with a
bright backlit display for use inside electrical panels.
Accu-Tip™ technology delivers amperage
measurements on smaller-gauged wires more accurately —
to a tenth of a digit.
Capacitance    2500 µF (Basic Accuracy ±2.0%)
For more details please refer datasheet.

TRMS Multimeter with VFD Mode - FLIR DM66 - FLIR
Product Overview

The DM66 digital multimeter is ideal for
automation field service or electronics technicians,
providing a comprehensive feature set including
low impedance (LoZ) mode,frequency,diode,capacitance,
and a Type K thermocouple input for temperature measurement.
The multimeter combines rich features, precise measurements,
and quality construction into a tool of exceptional value.
Easy to use and built to last, the DM66 offers
long-term stability for everyday use.
AC/DC Voltage:Range:
600.0 V Basic Accuracy: ±1.0% / ±0.4%
AC/DC microAmps    Range:
6000 µA Basic Accuracy: ±1.5% / ±1.0%
For more details please refer datasheet.

Voltage, Continuity, and Current Tester - FLIR VT8-Series - FLIR
Product Overview

The FLIR VT8-Series are high-quality voltage,
continuity, and current testers.
They feature an optimized, open-jaw design that
can fit into tight spaces and reliably measure
large-diameter cables.
The VT8-600 carries a CAT III-600 V/CAT IV-300V
safety rating and a 100 A/600 V measuring range,
while the VT8-1000 carries a CAT III-1000 V/
CAT IV-600V safety rating and a 200A/1000V measuring range.
AC/DC Current Range: 200 A
AC/DC Volts Accuracy: ±1.5%, ±1.0% (56 to 66 Hz)
AC/DC Volts Range: 1000 V
For more details please refer datasheet.

2000A True RMS AC/DC Clamp Meter - Extech 380926 - EXTECH
Product Overview

The Extech 380926 is a category IV, 2000-Amp,
TRMS AC/DC clamp meter with a rugged 2 in.
jaw to accommodate two 500 MCM cables.
A built-in full-function DMM can measure
AC/DC voltage and current, resistance,
capacitance, frequency, duty cycle,
diode and continuity.
Measurements are displayed on the
large 4000 count backlit display for
easy viewing in dimly lit areas.
Additional features include DCA push
button zero, Data Hold and Relative function.
For more details please refer datasheet.

200A AC/DC Mini Clamp Meter - 380941 - EXTECH
Product Overview

The compact Extech 380941 is a 200 Amp
mini AC/DC clamp meter with a small diameter
jaw designed to reach in small areas while
providing 10mA resolution (DC) and very
low-current sensitivity.
This mini clamp meter is useful for
troubleshooting tasks in plant maintenance,
electrical, HVAC, and telecom work, as well as
home electrical, fleet maintenance, marine,
and motorcycle repairs. The 380941 has a CAT III
300-Volt safety rating and a one year warranty.
Comes with batteries and manual.
For more details please refer datasheet.

30A True RMS AC/DC Mini Clamp Meter - 380942 - EXTECH
Product Overview

Extech 380942 is a 30 Amp mini AC/DC clamp meter.
The clamp meter has a remarkable 0.1mA resolution (AC),
very low-current sensitivity, and a small diameter
jaw designed to reach into small areas.
The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution
is optimized for finding problems where very low current
variances would be missed by standard clamp meters.
This mini clamp meter is useful for troubleshooting tasks
in plant maintenance, electrical, HVAC, and telecom work,
as well as residential electrical, fleet maintenance,
marine, and motorcycle repairs.
This CAT III-rated True RMS mini clamp meter comes
with test leads, 2 AA batteries and user manual.
For more details please refer datasheet.

80A Mini AC/DC Clamp Meter - 380950 - EXTECH
Product Overview

Extech 380950 is a mini AC/DC clamp meter.
The 380950 has an extra-small diameter
jaw designed to reach into very small areas
while providing a 1 mA resolution and very
\low-current sensitivity.
This amp clamp performs essential troubleshooting
tasks in plant maintenance, electrical, HVAC,
and telecom work as well as residential,
automotive, fleet maintenance, marine,
and motorcycle electrical repair.
Complete with test leads, two 1.5V AAA
batteries and carrying case.
For more details please refer datasheet.

400A Dual Input AC/DC Clamp Meter, NCV, IR Thermometer - EX623 - EXTECH
Product Overview

This TRMS AC/DC Clamp Meter has dual
thermocouple inputs for T1, T2, T1-T2
Differential Temperature measurement
plus a built-in Infrared Thermometer
with laser pointer for locating hot
spots and NCV Detector.
Additional features include:
DC micro-amp function for flame rod
measurements, Diode open circuit voltage
of 2.8 Volt, Data Hold plus fast Peak Hold
for capturing current surges at motor startup,
and capacitance measurement to 40mF.
For more details please refer datasheet.

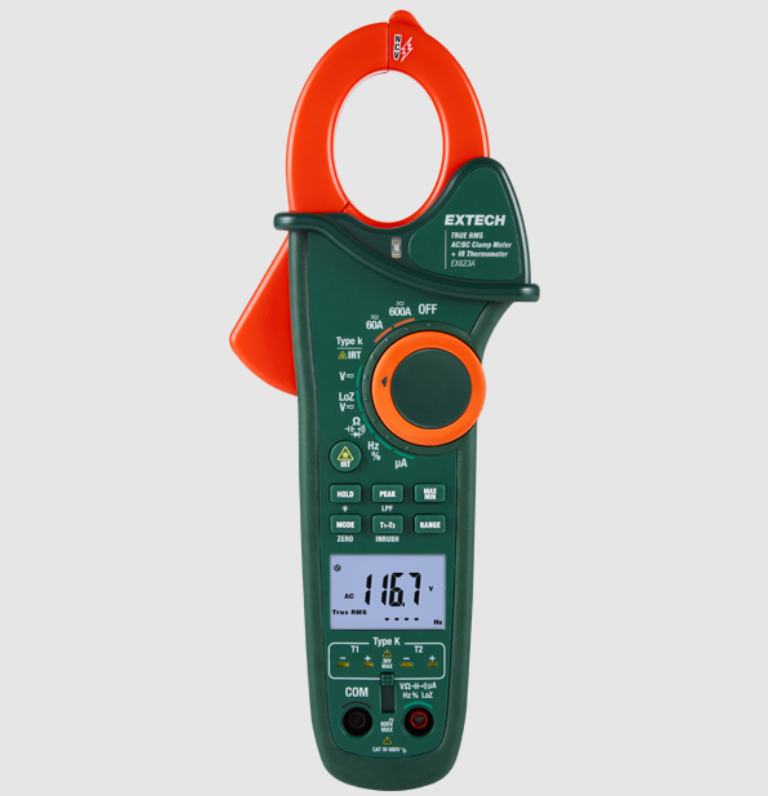

600 A Dual Input Clamp Meter with IR Thermometer & NCV - EX623A - EXTECH
Product Overview

The EX623A True RMS AC/DC clamp meter combines
dual thermocouple inputs for T1, T2, and T1-T2
differential temperature measurement.
It comes with a built-in infrared
thermometer and a laser pointer for
pinpointing hot spots and a Non-Contact
Voltage (NCV) detector,so you can safely
check for live electrical current.
It features a DC micro-amp function that
is ideal for flame rod measurements in
HVAC systems, and its capacitance measurement
capability extends up to 40 mF.
For more details please refer datasheet.

600A True RMS AC/DC Clamp Meter + NCV - EX655 - EXTECH
Product Overview

The EX655 is a 600A True RMS AC/DC Clamp meter.
This clamp meter also measures AC/DC voltage,
resistence, capacitance, frequency, temperature,
continuity/diode test and has an NCV detector.
The EX655 has a 1.18" jaw size which accomodates
conductors up to 350 MCM.
This meter also features a 6000 count backlit
LCD display, data hold, min/max, relative function,
low pass filter, inrush mode, DC zero function,
LCD trending bargraph, auto power off and a
convenient LED worklight.
For more details please refer datasheet.

1000A AC Clamp Meter with IR Thermometer - EX810 - EXTECH
Product Overview

The EX810 Clamp meter features a built-in
IR thermometer with laser pointer for
non-contact surface measurements from
-58 to 518 degrees Fahrenheit
(-50 to 270 degrees Celsius).
Clamp measures AC current up to 1000 Amp
with a maximum resolution of 0.1 Amp.
The 1.7 in. jaw fits around conductors up to 750MCM.
Peak hold captures motor inrush currents and other surges.
Data hold and auto power off functions.
Include AC/DC voltage, resistance, capacitance and frequency.
Complete with test leads, 9 Volt battery and case.
For more details please refer datasheet.

1000 A True RMS AC Clamp Meter with IR - EX820A - EXTECH
Product Overview

The EX820A clamp meter features a unique, built-in,
non-contact infrared thermometer with laser pointer
to monitor temperature and locate hot spots on motors
and electrical devices.
A large 6000 count LCD display with bright back lighting
allows you to easily see readings in dim light.
Its ergonomically designed double-molded housing offers
a better grip for one-handed operation and the
43 mm (1.7 in) diameter jaw opening is large enough for
conductors up to 750 MCM or two 500 MCM.
With 1000 A True RMS measurements and a CAT IV-600V
safety rating, the EX820A is ideal for electricians,
and plant maintenance professionals.
For more details please refer datasheet.

1000A True RMS AC/DC Clamp Meter - EX830 - EXTECH
Product Overview

The EX830 clamp meter features a unique,
built-in, non-contact Infrared thermometer
with laser pointer to monitor temperature
and locate hot spots on motors and electrical
devices. A large 4000 count LCD display with
bright back lighting allows you to see
the reading in dim light.
The 1.7" (43 mm) diameter jaw opening is large
enough for conductors up to 750MCM. In addition
to AC/DC current, it measures AC/DC voltage,
resistance, temperature, capacitance, and frequency.
For more details please refer datasheet.

1000A AC/DC True RMS Clamp/DMM - EX840 - EXTECH
Product Overview

This CAT IV True RMS clamp meter features
a built-in IR thermometer with laser pointer
for non-contact surface measurements from -58
to 518 °F (-50 to 270 °C).
Clamp measures AC current up to 1000 Amp with
a maximum resolution of 0.1 Amp. The 1.7-inch
jaw fits around conductors up to 750MCM.
Peak hold captures motor inrush currents
and other surges.
Data hold and auto power off functions.
Other functions include AC/DC Voltage, resistance,
Type K thermometer, capacitance and frequency.
For more details please refer datasheet.

1000 A Clamp Meter with IR Thermometer - EX840A - EXTECH
Product Overview

The EX840A clamp meter features a unique,
built-in, non-contact infrared thermometer
with laser pointer to monitor temperature and
locate hot spots on motors and electrical devices.
A large 6000 count LCD display with bright back
lighting allows you to see the reading in dim light.
With 1000 A True RMS measurements, measurement of
AC/DC current, and a CAT IV-600 V safety rating,
the EX840A is ideal for electricians, electrical
contractors, and plant maintenance professionals.
For more details please refer datasheet.

200A AC/DC Mini Clamp Meter+Voltage Detector - MA120 - EXTECH
Product Overview

The MA120 is a 200 Amp AC/DC mini clamp meter
with built-in AC voltage detector and built
in LED flashlight.
The meter measures Frequency up to 1 kHz with
0.01Hz resolution, auto ranges with auto power
off and data hold functions. Complete with a
year warranty, 2 AAA batteries and soft case.
AC Current Basic Accuracy: ±3.0%
AC Current Max Resolution: 100mA
DC Current: 200A
DC Current Basic Accuracy: ±3%
For more details please refer datasheet.

1500A True RMS AC/DC Clamp Meter + NCV - MA1500 - EXTECH
Product Overview

The MA1500 is a 1500A True RMS AC/DC Clamp Meter.
2.0 in. (52mm) jaw size for conductors up to 500MCM
with True RMS for accurate readings of
non-sinusoidal waveforms. Additional features include:
Relative Mode for Capacitance Zero and Offset Adjustment,
Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and
Inrush function to capture transients during motor startup.
Complete with test leads, Type K bead wire temperature
probe, 9V battery and carrying case.
Capacitance Max Resolution    0.01nF
DC Current: 400.00A, 1500.0A
DC Current Max Resolution: 0.01A
For more details please refer datasheet.

3000A True RMS AC Flex Clamp Meter - MA3018 - EXTECH
Product Overview

The Extech MA3018 is a 3000 A True RMS AC Flex Clamp Meter.
The MA3018 features an 45.7 cm (18 in) flexible
clamp with LCD monitor. The True RMS measurements
are for accurate readings of noisy, distorted,
or non-sinusoidal waveforms.
Complete with two AAA batteries.
UL listed and CAT IV 600V safety rating.
AC Current: 0 to 30.00A,30.00 to 300.0A,300.0 to 3000A
AC Current Basic Accuracy: ±(3% of reading + 5 digits)
AC Current Max Resolution: 0.01A
Jaw Size:18" (45.7cm)
True RMS: Yes
For more details please refer datasheet.

400A AC Clamp Meter + NCV - MA440 - EXTECH
Product Overview

Three models to choose from, with or without
True RMS and AC or AC/DC Current functions.
Choose True RMS model for accurate readings
of non-sinusoidal waveforms, model with
DC Current function for automotive applications,
or model with Type K function when applications
require Temperature measurements.
The MA440 Series meters are fully loaded
with multimeter functions and built-in non-contact
voltage (NCV) detector to meet your application needs!
Diode Test: Yes
Frequency: 1MHz
For more details please refer datasheet.

400A True RMS AC Clamp Meter + NCV - MA443 - EXTECH
Product Overview

Three models to choose from, with or without
True RMS and AC or AC/DC Current functions.
Choose True RMS model for accurate readings
of non-sinusoidal waveforms, model with
DC Current function for automotive applications,
or model with Type K function when applications
require Temperature measurements.
The MA440 Series meters are fully loaded
with multimeter functions and built-in non-contact
voltage (NCV) detector to meet your application needs!
Diode Test: Yes
Frequency: 1MHz
For more details please refer datasheet.

400A True RMS AC/DC Clamp Meter + NCV - MA445 - EXTECH
Product Overview

Three models to choose from, with or without
True RMS and AC or AC/DC Current functions.
Choose True RMS model for accurate readings
of non-sinusoidal waveforms, model with
DC Current function for automotive applications,
or model with Type K function when applications
require Temperature measurements.
The MA445 Series meters are fully loaded
with multimeter functions and built-in non-contact
voltage (NCV) detector to meet your application needs!
Diode Test: Yes
Frequency: 1MHz
For more details please refer datasheet.

60A True RMS AC/DC Clamp Meter + NCV - MA63 - EXTECH
Product Overview

The MA63 is an AC/DC current clamp with NCV
voltage detector and full overload protection.
The 6000mA range allows for low current
measurements that may be used in the
automotive industry.
Unique VFC (variable frequency control) mode helps
troubleshoot and diagnose HVAC applications that
are variable frequency driven.
The MA63 also features resistance, capacitance,
frequency, diode and continuity measurements
as well as data hold low battery indicator,
and auto power off functions.
For more details please refer datasheet.

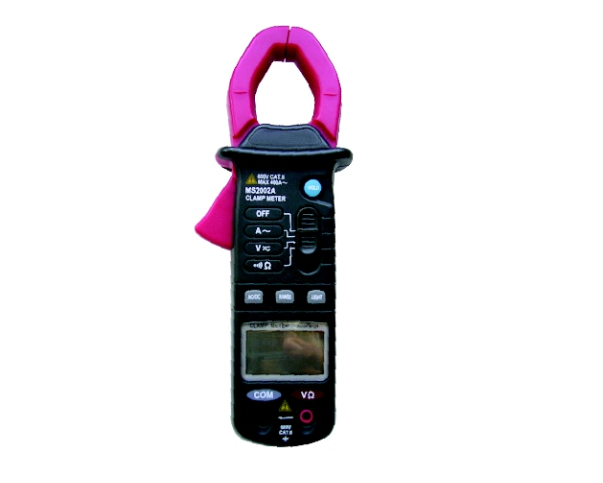

3 3/4 Digital Clamp Meter (Auto Range) - MS 2002A - MARS
Product Overview

3 ¾ Digits LCD with 42-segements bar graph,
max. reading 3999
SMT application
Auto/ Manual range
Data hold & LCD backlighting
Low battery indication
Audible continuity
Over load protection
DCV : 400/600V, ± 1.0%
ACV : 400/600V, ± 1.5%
ACA : 40/400A, ± 2.0%
For more details please refer datasheet.

3 /1/2 Digital Open Jaw Electrical Tester - MS 2600 - MARS
Product Overview

New open-jaw technology for AC current
measurement, easy to operate
Test leads can be inserted on back groove
of the tester
Versatility of use with capacitance, frequency
and duty cycle measurement
3 ¾ Digits LCD display
Auto/ Manual range
Data hold & LCD backlit
DCV : 4/40/400/1000V, ± 0.7%
ACV : 4/40/400/750V, ± 0.8%
For more details please refer datasheet.
