Our Products

Testing And Measuring Instruments

Show entries

Search:


10 Function Heavy Duty Industrial MultiMeter - EX503 - EXTECH Product Overview Data Sheet 10 Function Heavy Duty Industrial MultiMeter pdf Extech EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications),diode test,and continuity. Other features include data hold and relative hold, and manual or auto-ranging modes. \The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. For more details please refer datasheet.
10 Function True RMS Multimeter - Extech EX365 - EXTECH Product Overview Data Sheet 10 Function True RMS Multimeter pdf Extech EX365 is a industrial True RMS Multimeter with a built in non-contact voltage detector. It features highly accurate True RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5 % basic accuracy, a 1000V AC/DC volt range, and resistance up to 40 MΩ. It also has a continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX365 excels in frequency and capacitance measurements as well as commercial applications that require AC/DC current measurements from 1 mA to 10 A. For more details please refer datasheet.
11 Function Heavy Duty True RMS Industrial MultiMeter - EX520 - Product Overview Data Sheet 11 Function Heavy Duty True RMS Industrial MultiMeter pdf Designed to withstand harsh environments and usage, the meter's rugged, double-molded housing is IP67-rated (waterproof and dustproof) and drop-tested to 6 ft. The large, illuminated LCD displays 4-digit readout (to 6,000 counts). The EX520 offers various must-have measurements. The meter features 0.09 percent accuracy and a CAT IV 600-volt safety rating, protecting users even on outdoor wiring. Product includes a 3 year warranty, double molded test leads, 9V battery, magnetic hanging strap, temperature probe and carrying case. For more details please refer datasheet.
11 Function Heavy Duty True RMS Industrial MultiMeter - EX530 - EXTECH Product Overview Data Sheet 11 Function Heavy Duty True RMS Industrial MultiMeter pdf The EX530 is ideal for use in the outdoors, on boats, and in any harsh industrial environment. It has a double molded housing and is drop-proof up to six feet with a safety rating of CAT IV 600 Volt and CAT III 1000 Volt. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 to 20 mA, and duty cycle. Additional features include: 0.06% basic accuracy, continuity beeper, diode test (2.8 Volt open circuit voltage), 40000 count resolutions, backlit LCD with barograph, peak hold, data hold and 1000 Volt input protection for all functions. For more details please refer datasheet.
11 Function True RMS Multimeter + NCV - Extech EX350 - EXTECH Product Overview Data Sheet 11 Function True RMS Multimeter + NCV pdf The EX350 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 4000 count LCD display, data hold.. For more details please refer datasheet.

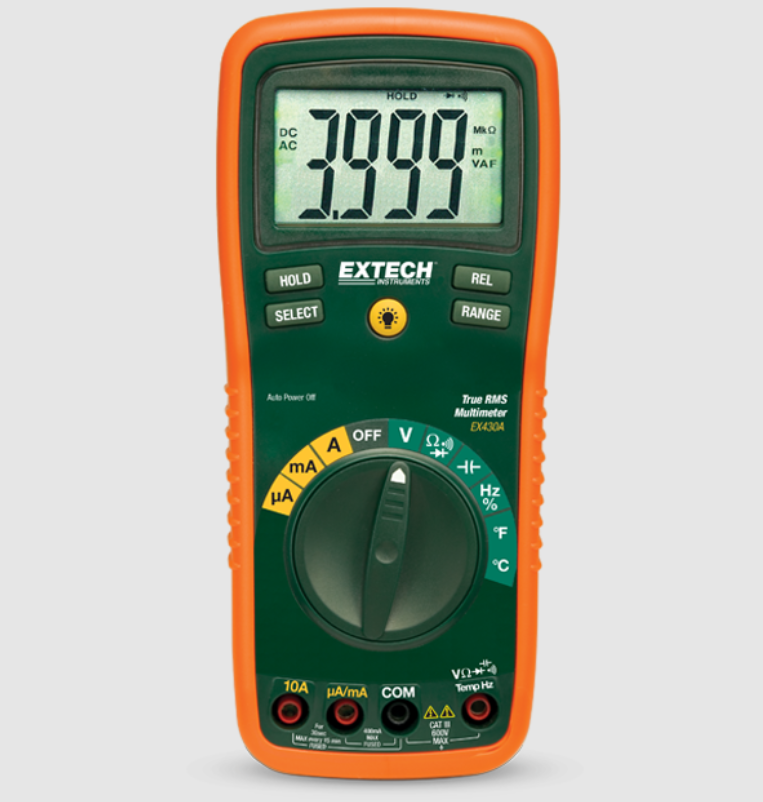

11 Function True RMS Professional MultiMeter - EX430A - EXTECH Product Overview Data Sheet 11 Function True RMS Professional MultiMeter pdf The Extech EX430A True RMS autoranging Multimeter (with K Type,capacitance,frequency and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. For more details please refer datasheet.
12 Function Mini MultiMeter+Non-Contact Voltage Detector - Extech EX330 - EXTECH Product Overview Data Sheet 12 Function Mini MultiMeter+Non-Contact Voltage Detector pdf The EX330 is a compact autoranging multimeter which features extra large 4000 count display and a built-in non-contact AC voltage detector. Advanced function include Frequency, Duty Cycle, Capacitance and Temperature, Diode test and continuity. Rubber holster protects meter. Includes test leads, Type K temperature probe, two AAA batteries and tilt stand. AC Current:0.1µA to 10A AC Voltage:0.1mV to 600V Capacitance:0.001nF to 200µF Continuity :Yes For more details please refer datasheet.
12 Function True RMS Multimeter + NCV - EX355 - EXTECH Product Overview Data Sheet 12 Function True RMS Multimeter + NCV pdf The EX355 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 6000 count LCD display, data hold, min-max, relative mode, capacitance zero, auto power off, continuity and diode test. For more details please refer datasheet.
12 Function True RMS Professional MultiMeter + InfraRed Thermometer - EX470A - EXTECH Product Overview Data Sheet 12 Function True RMS Professional MultiMeter + InfraRed Thermometer pdf The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity,and diode test. For more details please refer datasheet.
3.5 Digit Digital Multimeter (Manual Range) - VC 890D - MARS EDPAL Product Overview Data Sheet 3.5 Digit Digital Multimeter (Manual Range) pdf 3½ Digit Digital Multimeter (Manual Range) LCD Display, Max. Upto 1999 Manual operation Diode test, Triode test, Continuity test, Low Battery indication, Data hold Auto power off, Function protection, Self recover protection, Shock Protection Measure AC, DC Voltage & AC, DC Current, Resistance, Capacitance AC Frequency Response : 40 ~ 400Hz For more details please refer datasheet.

Showing 1 to 10 of 75 entries

Previous1 2 3 4 5…8Next
