Product Overview

Streamline UPS and lead-acid battery diagnostics with measurement and recording guidance
Resistance measurement range: 3 mΩ to 3 Ω, 4 ranges
Accuracy: ±0.8 % rdg.
Testing source frequency: 1 kHz ±30 Hz
Testing current: 160 mA,16 mA, 1.6 mA
Voltage measurement range: ± 6 V to ± 60 V,2 ranges, Accuracy: ±0.08 % rdg ±6 dgt
Temperature Measurement range: -10°C to 60°C
Measurement accuracy*: ±1.0°C (±1.8°F)
Power supply: LR6 (size AA) alkaline battery ×8
For more Details refer datasheet

Product Overview

Fully Automated Production Line Testing of Large Cells for EVs or Mid-sized Packs of up to 100 V
Resistance measurement ranges: 3 mΩ to 3 kΩ
Basic accuracy: ±0.5% rdg
Measurement frequency: 1 kHz ±0.2 Hz
Measurement method: AC four-terminal method
Voltage measurement ranges: 6 V to 100 V
Basic accuracy: ±0.01% rdg. ±3 dgt.Response time    10 ms
Functions: Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver
Power supply    100 to 240 V AC, 50 Hz/60 Hz, 35 VA max.
For more details refer datasheet


Product Overview

High-Voltage Battery Tester for Measuring EV and PHEV Battery Packs.
Resistance measurement ranges:3 mΩ to 3kΩ,7 ranges.
Accuracy: ± 0.5% rdg.
Testing source frequency: 1 kHz ± 0.2 Hz,
Voltage measurement ranges:    10 VDC to 1000 VDC.
Accuracy: ± 0.01% rdg.
Comparator functions:Judgment result: Hi/IN/Lo
Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA max.
For more details refer datasheet

Product Overview

Achieve Long Service Life Battery Modules by Measuring Reaction Resistance.
Measured information: Impedance,voltage,temperature.
Impedance measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ
Frequency: 0.1 Hz to 1050 Hz,
Voltage measurement range: 5.00000 V (single range).
Accuracy: Z: ±0.4% rdg.θ: ±0.1 °,V: ±0.0035% rdg. ±5 dgt.Temperature: ±0.5°C (at 10.0 to 40.0°C)
Functions: Comparator, self-calibration, sample delay,average,contact check,measurement current error, and other
Power supply: 100 to 240 V AC, 50/60 Hz, 80 VA max.
For more details refer datasheet

Product Overview

MECO BM63 is a portable Battery (Load) Meter which can check the capacity condition of different types of batteries from4 to 500Ah.
The product consists of a Load Resistor and Testing Clip. The state of the battery is indicated on the meter dial as 'FULLUP' (White), 'NORMAL' (Green),'RECHARGE' (Yellow), 'DISCHARGE' (Red) directly.
DC Voltmeter : 0 -15V DC
Rated Voltage of Battery to be Tested : 2, 6, 12V DC
Rated Capacity of Battery to be Tested : 4 - 500Ah
Weight : 550gms (approx.)
Dimensions : 220 x 120 x 70mm (approx)
For more details refer datasheet

Product Overview

DIGITAL BATTERY METER (UPTO 200 AH & 12V) - LOAD TESTER
LED Indication of Battery Condition : GOOD (Green), WEAK (Yellow) & BAD (Red)
Rated Voltage of Battery to be Tested : 6, 12V DC
Rated Capacity of Battery to be Tested : 40 ~ 200Ah
Built-In 10 Seconds Timer to Auto Cut-Off Load After Test
Temperature Rise is Controlled (for Circuit Protection)
Two Way Internal Resistance Measurement
LED Indication of Battery Condition :
GOOD (Green), WEAK (Yellow) & BAD (Red)
Battery Load Test Current : 80A
Weight : 900gms (approx.)
Dimensions : 205 x 115 x 70mm (approx)
For more details refer datasheet

Product Overview

Motorcycle / Two Wheeler Battery Meter (12V, 3 TO 20AH)
Display of Battery Condition [Good / Caution / Replace].
CCA Range : 100 ~ 1000
Ah Range : 3 ~ 20Ah (not continuos)
Voltage Range : 9 ~ 16V ±3%
Weight : 266g (approx.)
Dimensions : 146 x 82 x 25mm (approx.)
For more details refer datasheet.

Product Overview

Vehicle Battery System Meter with Built - In Printer Suitable for 12 and 24 V DC Batteries
CCA Range : 100 ~ 1700
IEC Range : 100 ~ 1000
EN Range : 100 ~ 1700
DIN Range : 100 ~ 1000
Battery Voltage : 12V / 24V
Display Battery Condition : GOOD / OK / Pay Attention / Replace
Safety Standard : CAT III 600V
Weight : 450g (approx.)
For more details refer datasheet.

Product Overview

The Extech BT100 is a Battery Capacity Tester.
We can use to test the condition of batteries quickly and easily.
On-line testing without disconnecting battery
Built-in datalogger manually stores up to 999 sets and
9600 sets for continuous datalogging
Simultaneously measures DC Voltage and AC Milliohms
Includes Windows® 95/98/NT/2000/ME/XP compatible
software for downloading readings to a PC
For more details refer datasheet.

Product Overview

MECO VBSM6129B is a portable Vehicle Battery System Meter
Overload Protection to ensure Operator Safety
Loose Lead Detection
CCA Range : 100 ~ 1700
IEC Range : 100 ~ 1000
EN Range : 100 ~ 1700
DIN Range : 100 ~ 1000
Battery Voltage : 12V
For more details refer datasheet.

Product Overview

Premier Pocket DMM with CAT IV 300 V,CAT III 600 V Safety
DC Voltage range:600.0 mV to 600.0 V, 4 ranges,
Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range    6.000 V to 600.0 V, 3 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt.
Resistance range    N/A
Capacitance range    N/A
Frequency range    AC V measurement: 99.99 Hz to 9.999 kHz,3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
For more details refer datasheet.

Product Overview

DT4222 is a pocket-sized digital multimeter
Designed specifically for general purpose testing,
DC Voltage range:600.0 mV to 600.0 V, 4 ranges,
Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range:6.000 V to 600.0 V, 3 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz: ±1.0 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges,
Basic accuracy: ±0.9 % rdg. ±5 dgt.
For more details refer datasheet.

Product Overview

Pocket DMM that Prevents False Circuit Breaker Trips
DC Voltage range:600.0 mV to 600.0 V, 4 ranges,
Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range:6.000 V to 600.0 V, 3 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
Frequency range    AC V measurement:99.99 to 9.999 kHz,3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
For more details refer datasheet.

Product Overview

Pocket DMM that Prevents False Circuit Breaker Trips
DC Voltage range:600.0 mV to 600.0 V, 4 ranges,
Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range:6.000 V to 600.0 V, 3 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz:±1.0 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges
Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range:    1.000 μF to 10.00 mF, 5 ranges,
Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range    AC V measurement: 99.99 Hz to 9.999 kHz, 3 ranges
For more details refer datasheet.

Product Overview

Standard DMM that Delivers Top Safety and Reliability
DC Voltage range:600.0 mV to 1000 V,5 ranges
Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC Voltage range:6.000 V to 1000 V, 4 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges,
Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC Current range:6.000 A /10.00 A, 2 ranges,
Basic accuracy: ±0.9 % rdg. ±5 dgt.
For more details refer datasheet.

Product Overview

Standard DMM that Delivers Top Safety and Reliability
DC Voltage range:600.0 mV to 1000 V,5 ranges
Basic accuracy: ±0.3 % rdg. ±5 dgt.
AC Voltage range:6.000 V to 1000 V, 4 ranges,
Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges,
Basic accuracy: ±0.7 % rdg. ±5 dgt.
DC Current range:6.000 A /10.00 A, 2 ranges,
Basic accuracy: ±0.9 % rdg. ±5 dgt.
For more details refer datasheet.

Product Overview

Standard DMM that Delivers Top Safety and Reliability
DC Voltage range:600.0 mV to 1000 V 5 ranges,
Basic accuracy:±0.3 % rdg. ±3 dgt.
AC Voltage range:6.000 V to 1000 V, 4 ranges,
Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz:±0.9 % rdg. ±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ, 6 ranges,
Basic accuracy: ±0.7 % rdg. ±3 dgt.
(use with Clamp on probes) :  10.00 A to 1000 A, 7ranges
For more details refer datasheet.

Product Overview

General Purpose Testers with Rich Measurement Functions
DC Voltage range:600.0 mV to 1000 V,5 ranges
Basic accuracy:±0.3 % rdg.±3 dgt.
AC Voltage range:6.000 V to 1000 V,4 ranges,
Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 - 500 Hz : ±0.9 % rdg.±3 dgt.
Resistance range:600.0 Ω to 60.00 MΩ,6 ranges,
Basic accuracy: ±0.7 % rdg. ±3 dgt.
DC Current range:60.00 mA to 10.00 A,4 ranges,
For more details refer datasheet.

Product Overview

Analyzing Issues and Dramatically Improving Work Efficiency
DC Voltage range:600.0 mV to 1000 V,5 ranges,
Basic accuracy: ±0.15% rdg. ±2 dgt.
AC Voltage range:6.000 V to 1000 V,4 ranges,
Frequency characteristics: 40 Hz to 1kHz
Basic accuracy:40 Hz - 500 Hz: ±0.9% rdg.±3dgt.
DC + AC Voltage range:6.000 V to 1000 V,4 ranges,
Frequency characteristics: DC, 40 Hz to 1 kHz
Basic accuracy DC, 40 Hz - 500 Hz: ±1.0% rdg.±13dgt.
For more details refer datasheet.

Product Overview

Superior Accuracy DMM Topped with Safety Terminal Shutters
DC Voltage range:60.000 mV to 1000.0 V,6ranges,
Basic accuracy:±0.025% rdg.±2 dgt.
AC Voltage* range:60.000 mV to 1000.0 V,6ranges,
Frequency characteristics:20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz:±0.2 % rdg. ±25 dgt.
DC+AC Voltage* range:6.0000 V to 1000.0 V,4 ranges,
Frequency characteristics:20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz:±0.3 % rdg. ±30 dgt.
For more details refer datasheet.

Product Overview

Superior Accuracy DMM Topped with Safety Terminal Shutters
DC Voltage range:60.000 mV to 1000.0 V,6ranges,
Basic accuracy:±0.025% rdg.±2 dgt.
AC Voltage* range:60.000 mV to 1000.0 V,6ranges,
Frequency characteristics:20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz:±0.2 % rdg. ±25 dgt.
DC+AC Voltage* range:6.0000 V to 1000.0 V,4 ranges,
Frequency characteristics:20 Hz - 100 kHz
Basic accuracy 45 - 65 Hz:±0.3 % rdg. ±30 dgt.
For more details refer datasheet.

Product Overview

7-1/2 Digit,9 ppm High Precision DC Voltmeter
DC Voltage:100 mV to 1000 V,5 ranges
Basic accuracy 10 V range: ±0.0009% rdg.±12 μV
Temperature:-10.0°C to 60.0°C (14.0°F to 140°F),
combined with sensor Z2001: ±0.5°C (5.0°C to 35°C)
Integration time Integration time unit:PLC/ms
PLC setting:0.02/0.2/1/10/100,ms setting:1ms to 9999 ms
Power supply:100 to 240 V AC, 50/60 Hz, 30 VA
For more details refer datasheet.

Product Overview

7-1/2 Digit DC Voltmeter for R&D to Production Lines
DC Voltage:100 mV to 1000 V, 5 ranges
Basic accuracy:10 V range: ±0.0020% rdg. ±12 μV
Temperature:-10.0°C to 60.0°C (14.0°F to 140°F),
combined with sensor Z2001: ±0.5°C (5.0°C to 35°C)
Integration time unit: PLC/ms
Measurement support functions Smoothing function,
null, temperature compensation,scaling,over-range display,
self-calibration, auto-hold, contact check
Power supply:100 to 240 V AC, 50/60 Hz, 30 VA
For more details refer datasheet.

Product Overview

Large Jaw Lets You Clamp with Ease,
Measure thick cables right at the terminal
AC Current range:42.00 to 2000 A,3 ranges
Basic accuracy 50-60 Hz:±1.5% rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy 45-66 Hz:±1.8% rdg. ±7 dgt.
Power supply:Coin type lithium battery(CR2032) ×1,120 hours
For more details refer datasheet.

Product Overview

Large Jaw Lets You Clamp with Ease,
Measure thick cables right at the terminal
AC Current range:42.00 to 2000 A,3 ranges
Basic accuracy 45-66 Hz: ±1.5% rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.(at 4.2 V range)
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt.
Power supply:Coin type lithium battery (CR2032) ×1,70 hours
For more details refer datasheet.

Product Overview

Quickly Check Current, Voltage, Power,and Power Factor
Detect Electricity Theft and Meter Tampering
AC voltage range:80.0 V to 600.0 V, Single range,
Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt.
Frequency characteristics: 45 to 1 kHz, True RMS
AC current range:0.060 A to 600.0 A,3 range,
Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt.
Frequency characteristics: 45 to 1 kHz, True RMS
Power range:0.005 kW to 360.0 kW
For more details refer datasheet.

Product Overview

Quickly clamp wires in even more confined spaces!
AC Current range:42.00 to 1000 A,3 ranges
Basic accuracy:±1.5 % rdg. ±5 dgt.
DC Voltage range:420.0 mV to 600 V,5 ranges,
Basic accuracy:±1.0 % rdg. ±3 dgt.
AC Voltage range:4.200 V to 600 V,4 ranges
Basic accuracy:±1.8 % rdg. ±7 dgt.
Crest factor:2.5 or less at 2500 counts
Resistance range:420.0 Ω to 42.00 MΩ,6 ranges,
For more details refer datasheet.

Product Overview

Leakage Current Meter with Remarkable Ease of Use
Double Your Work Speed with Innovative Jaw Design
AC Current range:60.00 mA/600.0 A,5 ranges
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt
Guaranteed accuracy: from 0.60 mA to 600.0A
Frequency range    40.0 Hz to 999.9 Hz
Crest factor    4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)
Output function    N/A
For more details refer datasheet.

Product Overview

Prevent unexpected downtime!
Identify potential problems and avoid large problems
AC Current range:6.000 mA, 60.00 mA, 600.0 mA,
6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz-400 Hz: ±1.0% rdg ±5 dgt
Basic accuracy 15 Hz-45 Hz,400 Hz-2 kHz:±2.0%rdg±5dgt
Defined accuracy range: 0.060 mA to 200.0 A
AC Voltage range    N/A
Frequency range    15.0 Hz to 2000 Hz
For more details refer datasheet.

Product Overview

Prevent unexpected downtime!
Identify potential problems and avoid large problems
AC Current range:6.000 mA,60.00 mA,600.0 mA,6.000 A,
60.00 A,200.0 A, 6 ranges, True RMS
Basic accuracy 45 Hz-400 Hz:±1.0%rdg±5 dgt
Basic accuracy 15 Hz-45 Hz,400 Hz-2kHz:±2.0% rdg ±5 dgt
Defined accuracy range:0.060mA to 200.0A
AC Voltage range:N/A
Frequency range:15.0 Hz to 2000 Hz
For more details refer datasheet.

Product Overview

True RMS 2000 A AC Clamp Meter
AC Current range:60.00 A to 2000 A,3ranges,
Basic accuracy 45-66 Hz: ±1.5% rdg. ±0.08 A
Crest factor:For the 60.00 A range: 2.5
(greater than 50.00 A and less than or equal to 60.00 A)
to 2000 A range: 1.5 (2000 A or less)
DC Voltage range:600.0 ｍV to 1000 V
AC Voltage range    6.000 V to 1000 V,4ranges
Basic accuracy 45-66 Hz: ±0.9% rdg. 0.003 V (at 6 V)
For more details refer datasheet.

Product Overview

True RMS 600 A AC/DC Clamp Meter
With DMM Functions that Deliver Top Safety
DC Current range:20.00A/600.0 A,
Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
AC Current range:20.00 A/600.0 A
Basic accuracy:45-66 Hz: ±1.3% rdg.
Crest factor:20.00 A range: 7.5
600.0 A range: 3 or less
DC+AC Current range:20.00 A/600.0 A
For more details refer datasheet.

Product Overview

True RMS 2000 A AC/DC Clamp Meter
With DMM Functions that Deliver Top Safety
DC Current range:600.0 A/2000 A,
Basic accuracy:±1.3% rdg.
AC Current range:600.0 A/2000 A
Basic accuracy 45 - 66 Hz:±1.3% rdg. ±0.3 A
Crest factor 600.0 A range:3 or less
2000 A range:2.84 or less
DC+AC Current range:600.0 A/2000 A
For more details refer datasheet.

Product Overview

True RMS 1000 A AC/DC Clamp Meter
Easily Get Into Tight Spaces-Innovative Jaw
DC Current range:1000 A,
Basic accuracy:±1.3% rdg.±0.3 A
AC Current range:1000 A,
Basic accuracy 45-66 Hz:±1.8% rdg.
Crest factor:1000 A range: 1.5
DC+AC Current range    1000 A
Basic accuracy DC, 45-66 Hz: ±1.3% rdg.
For more details refer datasheet.

Product Overview

Multi-functional Receiving and Display Unit to Use
Output to Advanced Recorder or Logger
Measurement parameters:DC,AC,DC+AC,Hz
Crest factor:3at 5000 count
Output method:WAVE, RMS, PEAK, FREQ
Input connectors:HIOKI PL 14
PEAK sensing duration:2 ms or greater
Other functions    Auto range,Zero adjustment at power-up,
Analysis display, Filter, Output amplification,
For more details refer datasheet.

Product Overview

Multi-functional Receiving/Display Unit to Use
Output to Advanced Recorder or Logger
Measurement parameters:DC,AC,DC+AC,Hz
Crest factor:3 at 5000 count
Output method:WAVE, RMS, PEAK, FREQ
Input connectors:HIOKI PL 14
PEAK sensing duration:2 ms or greater
Other functions    Auto range,Zero adjustment at power-up,
Analysis display, Filter, Output amplification,
For more details refer datasheet.

Product Overview

Card-style Pocket Digital Multimeter
for General Electrical Maintenance and Testing
DC Voltage range:419.9 mV to 500 V,5 ranges,
Basic accuracy: ±0.7 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 500 V,4 ranges,
Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt.
Resistance range:419.9 Ω to 41.99 MΩ, 6 ranges,
Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity buzzer:Detection level 50 Ω ±40 Ω,
Display    Digital LCD, max. 4199 digits
For more details refer datasheet.

Product Overview

Pencil-style Pocket Digital Multimeter for
General Electrical Maintenance, Testing and Hobbyists
DC Voltage range:419.9 mV to 600 V, 5 ranges,
Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 600 V, 4 ranges,
Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt.
Resistance range:419.9 Ω to 41.99 MΩ, 6 ranges,
Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity buzzer:Detection level 50 Ω ±40 Ω
For more details refer datasheet.

Product Overview

Essential Equipment for Professional Electricians
Measure Current and Voltage with a Single Instrument
AC Current range:41.99 to 1000 A,3 ranges,
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor:N/A
For more details refer datasheet.

Product Overview

One-Touch Maintenance on All Types of AC/DC Equipment
DC Current range:10.00/ 100.0 A,
Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range:10.00/ 100.0 A
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges
Basic accuracy: ±2.3 % rdg. ±8 dgt.
For more details refer datasheet.

Product Overview

One-Touch Maintenance on All Types of AC/DC Equipment
DC Current range:100.0/ 1000 A,
Basic accuracy:±1.5 % rdg. ±5 dgt.
AC Current range:100.0/ 1000 A,
Basic accuracy:±1.5 % rdg. ±5 dgt.
DC Voltage range:419.9 mV to 600 V,5 ranges,
Basic accuracy:±1.3 % rdg. ±4 dgt.
AC Voltage range:4.199 V to 600 V,4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
For more details refer datasheet.

Product Overview

Classic Ground Resistance Tester Using
3-Pole Method with Easy Cord Winding System
Measurement range:10 Ω,100 Ω, 1000 Ω
Nominal Deviation    ±0.25 Ω    ±2.5 Ω    ±25 Ω
Functions:Auxiliary earth resistance check
Earth potential measurement    0 to 30 V,
Nominal Deviation: ±3.0 % f.s.
Power supply:LR6(AA)Alkaline battery×6,1100 times
For more details refer datasheet.

Product Overview

Light Meter with Broad Coverage from Low to High Illuminance
Standards:DIN 5032-7:1985 class B,JIS C 1609-1:2006general AA class
Light receiving element    Silicon photo diode
Range selection:Auto/ Manual
Linearity:±2% rdg.
Accuracy for temperature and humidity:21°C to 27°C,75% rh
Response time:Auto range:within 5 seconds,
Manual range:within 2 seconds
D/A output:Output level: 2 V/range f.s.
For more details refer datasheet.

Product Overview

High Reliability LUX METER Series,
Complies with DIN Class B,
Compatible with LED/OLED Lighting
Light receiving element:Silicon photo diode
Range selection:Auto/ Manual
Linearity:±2% rdg.
Accuracy for temperature and humidity:21°C to 27°C,75% rh
Response time:Auto range:within 5 seconds,Manual range:in 2 seconds
For more details refer datasheet.

Product Overview

Providing Robust Support for 3-Axis
Magnetic Flux Density Measurement
10Hz to 400kHz/10Hz to 2kHz/2kHz to 400kHz
Exposure level:General public/Occupational
Display:Single axes X, Y, Z (2000 counts),
Composite RMS value R (3464 counts), Magnetic flux density
(unit: T, G, A/m),Exposure level (unit: %)
Magnetic flux density/Ranges and accuracy:
[X, Y, Z axes]:2.000 μT to 2.000 mT, 4 ranges,
For more details refer datasheet.

Product Overview

Providing Robust Support for 3-Axis
Magnetic Flux Density Measurement
10Hz to 400kHz/10Hz to 2kHz/2kHz to 400kHz
Exposure level:General public/Occupational
Display:Single axes X, Y, Z (2000 counts),
Composite RMS value R (3464 counts), Magnetic flux density
(unit: T, G, A/m),Exposure level (unit: %)
Magnetic flux density/Ranges and accuracy:
[X, Y, Z axes]:2.000 μT to 2.000 mT, 4 ranges,
For more details refer datasheet.

Product Overview

Tough and Ready for the Field
IP67 Dustproof and Waterproof
Measurement system:Two-electrode method/
three-electrode method (switchable)
Measurement range:20Ω,200Ω,2000Ω(0Ω〜2000Ω)
Accuracy:±1.5%rdg ±8dgt,±1.5%rdg ±4dgt,±1.5%rdg ±4dgt
Earth voltage:0〜30.0 V rms
Accuracy:±2.3%rdg ±8dgt(50Hz/60Hz),±1.3%rdg ±4dgt(DC)
For more details refer datasheet.

Product Overview

Clamp-On Ground Resistance Tester with Super Slim Jaw
Earthing resistance range:0.20Ω to 1600Ω,10ranges
Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current range:20.00mA to 60.0A,5ranges,
Zero suppression: Less than 0.05 mA,
Accuracy: ±2.0 % rdg. ±0.05 mA
Crest factor 5.0 or less
Memory function:2000 data
For more details refer datasheet.

Product Overview

Ideal for Production Lines of Electronic Parts
Measurement modes:LCR(Measurement with single condition),
Continuous testing(Measurement under saved conditions)
Measurement range:100mΩ to 100MΩ,10 ranges
Output impedance:100Ω
Display : Monochrome LCD
Basic accuracy: Z :±0.05% rdg. θ: ±0.03°
Measurement frequency:40Hz to 200kHz
For more details refer datasheet.

Product Overview

From R&D Applications to Windings,
Coil and Transformer Manufacturing
Measurement modes:LCR(single condition),
Transformer testing (N, M, ΔL),
Continuous testing(under saved conditions)(LCR mode)
Measurement range:100mΩ to 100MΩ,10 ranges
Basic accuracy    Z :±0.05% rdg. θ: ±0.03°
Measurement frequency:1 mHz to 200 kHz
For more details refer datasheet.

Product Overview

LCR Meters with Measurement Frequency(DC),4Hz to 8MHz
Measurement modes:LCR(Measurement with single condition),
Continuous testing(measurement under saved conditions)
Measurement range:100 mΩ to 100 MΩ,10 ranges
Basic accuracy    Z :±0.05% rdg. θ: ±0.03°
Measurement frequency:4Hz to 8MHz
Functions:Comparator, BIN measurement
Trigger function, Open/short compensation, Contact check
For more details refer datasheet.

Product Overview

Single Device for High Speed Testing and Frequency Sweeping
Measurement modes:LCR mode,Analyzer mode
(Sweeps with frequency and level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,Rdc(DC resistance),
X, G, B, Cs, Cp, Ls, Lp,D (tanδ), Q
Measurement range:100mΩ to 100MΩ,12 ranges
Trigger function, Open/short compensation, Contact check
For more details refer datasheet.

Product Overview

For R&D applications of Electrochemical Components
and Materials, Batteries, and EDLCs
Measurement modes:LCR mode, Continuous measurement mode
(LCR mode / Analyzer mode), Analyzer mode
(Sweeps with measurement frequency and measurement level,
temperature characteristics, equivalent circuit analysis)
Measurement range:100 mΩ to 100 MΩ, 10 ranges
Basic accuracy    Z: ±0.05% rdg. θ: ±0.03°
For more details refer datasheet.

Product Overview

Impedance Analyzer with 0.5ms Test Speed and Rpeatability
Measurement modes:LCR mode,Analyzer mode
(Sweeps with measurement frequency and  level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,X,G,B,Cs,Cp,Ls,Lp
Measurable range:100 mΩ to 5 kΩ
Basic accuracy: Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency:1.0000MHz to 300.00MHz
For more details refer datasheet.

Product Overview

Impedance Analyzer with 0.5 ms Test Speed
Measurement modes:LCR mode,Analyzer mode
(Sweeps with measurement frequency and level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,X,G,B,Cs,Cp,Ls,Lp,
Measurable range:100 mΩ to 5 kΩ
Basic accuracy    Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency:100.00kHz to 300.00MHz
For more details refer datasheet.

Product Overview

Impedance Analyzer with 0.5 ms Test Speed
Measurement modes:LCR mode,Analyzer mode
(Sweeps with measurement frequency and level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,X,G,B,Cs,Cp,Ls,Lp,
Measurable range:100 mΩ to 5 kΩ
Basic accuracy    Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency:1 MHz to 600 MHz
For more details refer datasheet.

Product Overview

1MHz to 1.3GHz Measurement Frequency Impedance Analyzer
with 0.5ms Test Speed and 0.07% Variability
Measurement modes:LCR mode,Analyzer mode
(Sweeps with measurement frequency and level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,X,G,B,Cs,Cp,Ls,Lp
Measurable range:100 mΩ to 5 kΩ
Basic accuracy    Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency:1 MHz to 1.3 GHz
For more details refer datasheet.

Product Overview

1 MHz to 3 GHz Measurement Frequency Impedance Analyzer
with 0.5 ms Test Speed and 0.07% Variability
Measurement modes:LCR mode,Analyzer mode
(Sweeps with measurement frequency and level),
Continuous measurement mode
Measurement parameters:Z,Y,θ,Rs(ESR),Rp,X,G,B,Cs,Cp,Ls,Lp,
Measurable range:100 mΩ to 5 kΩ
Basic accuracy    Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency:1 MHz to 3 GHz
For more details refer datasheet.

Product Overview

Reliable and Efficient Insulation Testing in the Field
Rated output voltage:500 V DC
Effective maximum indicated value:100 MΩ
Accuracy 1st effective measuring range:0.1M to 50MΩ
Lower limit resistance:0.5 MΩ
Overload protection:600 V AC (10 sec.)
AC voltage range;0 to 600 V (50/60 Hz)
500 kΩ or more input resistance
For more details refer datasheet.

Product Overview

Reliable and Efficient Insulation Testing in the Field
Rated output voltage:500 V DC
Effective maximum indicated value:1000 MΩ
Accuracy 1st effective measuring range:1M to 500MΩ
Lower limit resistance:0.5 MΩ
Overload protection:600 V AC (10 sec.)
AC voltage range;0 to 600 V (50/60 Hz)
500 kΩ or more input resistance
For more details refer datasheet.

Product Overview

Reliable and Efficient Insulation Testing in the Field
Rated output voltage:1000 V DC
Effective maximum indicated value:2000 MΩ
Accuracy 1st effective measuring range:2M to 1000MΩ
Lower limit resistance:1 MΩ
Overload protection:1200 V AC (10 sec.)
AC voltage range;0 to 600 V (50/60 Hz)
500 kΩ or more input resistance
For more details refer datasheet.

Product Overview

Measure PV Insulation Resistance Safely,
Rated output voltage:500V DC,1000V DC
Maximum indicated value:2000MΩ,4000MΩ
Measuring range/Accuracy:0.200 to 500MΩ/±4%rdg.
1010 to 4000 MΩ / ±8% rdg.
Other measuring range/Accuracy:0 to 0.199MΩ/±2% rdg.
Lower limit resistance:0.05MΩ to 1 MΩ
For more details refer datasheet.

Product Overview

Quick Response Comparator Offering
Reading Stability in High-speed Digital Format
Rated output voltage:50V DC    to 1000V DC
Maximum indicated value:100MΩ to 4000MΩ
Lower limit resistance:0.05MΩ    to 1MΩ
Overload protection:600V AC (10s)
DC voltage range:4.2V to 600V,4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt.,
Input resistance: 100 kΩ or higher
For more details refer datasheet.

Product Overview

Our Most Popular Model Offering Reading Stability
In Medium-speed Digital Format
Rated output voltage: 50V DC to 1000V DC
Maximum indicated value: 100MΩ to 4000 MΩ
Lower limit resistance:    0.05MΩ to 1MΩ
Overload protection: 600V AC (10s),660 V AC (10s)
DC voltage range:4.2V to 600V 4 ranges,
Accuracy: ±1.3 % rdg. ±4 dgt.
Input resistance: 100 kΩ or higher
For more details refer datasheet.

Product Overview

Our Most Popular Model Offering Reading Stability
In Medium-speed Digital Format
Rated output voltage: 50V DC to 1000V DC
Maximum indicated value: 100MΩ to 4000 MΩ
Lower limit resistance:    0.05MΩ to 1MΩ
Overload protection: 600V AC (10s),660 V AC (10s)
DC voltage range:4.2V to 600V 4 ranges,
Accuracy: ±1.3 % rdg. ±4 dgt.
Input resistance: 100 kΩ or higher
For more details refer datasheet.

Product Overview

Maximum 5kV Test Voltage
Up to 10 TΩ of Insulation Resistance Testing.
Measurement parameters:Insulation resistance,
Leakage current,Voltage,Capacitance(DD function)
Max. rated voltage to terminals:1000V AC,2000V DC
Temperature and humidity range:-20°C to 50 °C
Dustproof/waterproof:IP40,IP65
Continuous operating time (*2):Approx 5 hours
For more details refer datasheet.

Product Overview

Measure Solar PV System Insulation Resistance
Safely and Accurately While Generating.
Maximum 5kV Test Voltage
Up to 10 TΩ of Insulation Resistance Testing.
Measurement parameters:Insulation resistance,
Leakage current,Voltage,Capacitance(DD function)
Max. rated voltage to terminals:1000V AC,2000V DC
Max. rated voltage to ground: 1000V(CAT IV),600V
For more details refer datasheet.

Product Overview

Quantify composite layer resistance
Interface resistance in Li-ion battery electrode sheets
Measurement parameters    Composite resistivity [Ωcm]
Information necessary for computation
Composite layer thickness [μm] (for 1 side)
Current collector thickness [μm]
Current collector volume resistivity [Ωcm]
Measurement current:1μA(min.) to 10mA(max.)
For more details refer datasheet.

Product Overview

Measure in as Fast as 0.9 ms,Optimized for Automated Systems
Resistance range:100mΩ range to 100MΩ range,10 steps
[at Low Power ON] 1000 mΩ range to 1000 Ω range,4 steps
Display:Monochrome graphic LCD 240 × 64 dot,LED backlight
Testing current: 100mA DC to 100nA DC
Open-terminal voltage:20 V DC max.
Sampling rate:FAST, MEDIUM, SLOW,3 settings
Power supply:100 to 240V AC,50/60Hz,30VA max.
For more details refer datasheet.

Product Overview

Resistance Meter for Ultra-low and Low Shunt Resistance
Measurement method    Four-terminal, constant-current DC
Resistance range:10mΩ to 1000Ω range,7steps
Display:Monochrome graphic LCD 240 × 64 dot
Measurement accuracy:±0.060 % rdg. ±0.001 % f.s.
Testing current:1A DC to 1mA DC
Open-terminal voltage:20V DC max.
Sampling rate:FAST,MEDIUM,SLOW,3settings
For more details refer datasheet.

Product Overview

New Heights in 100% Inspection.
Market leading precision tests for testing
every weld or connection on your production line.
Testing current (Measurement current):
High mode: 1000μΩ (1 A) to 1000 MΩ (up to 1 μA)
Low mode: 100 mΩ (100 mA) to 100 Ω (1 mA)
Low power mode (LP): Low power measurement with current
and open circuit voltage down to 20 mV
LP1000 mΩ (1 mA) to LP1000 Ω (5 μA)
For more details refer datasheet.

Product Overview

Portable Resistance Meter Measures from µΩ to MΩ
Resistance range:3mΩ to 3MΩ range,10steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current    : 1A DC to 500nA DC
Open-terminal voltage5.5 V DC max.
Temperature measurement:-10.0 to 99.9°C,
accuracy: ±0.50°C
Measurement speed:Fixed
For more details refer datasheet.

Product Overview

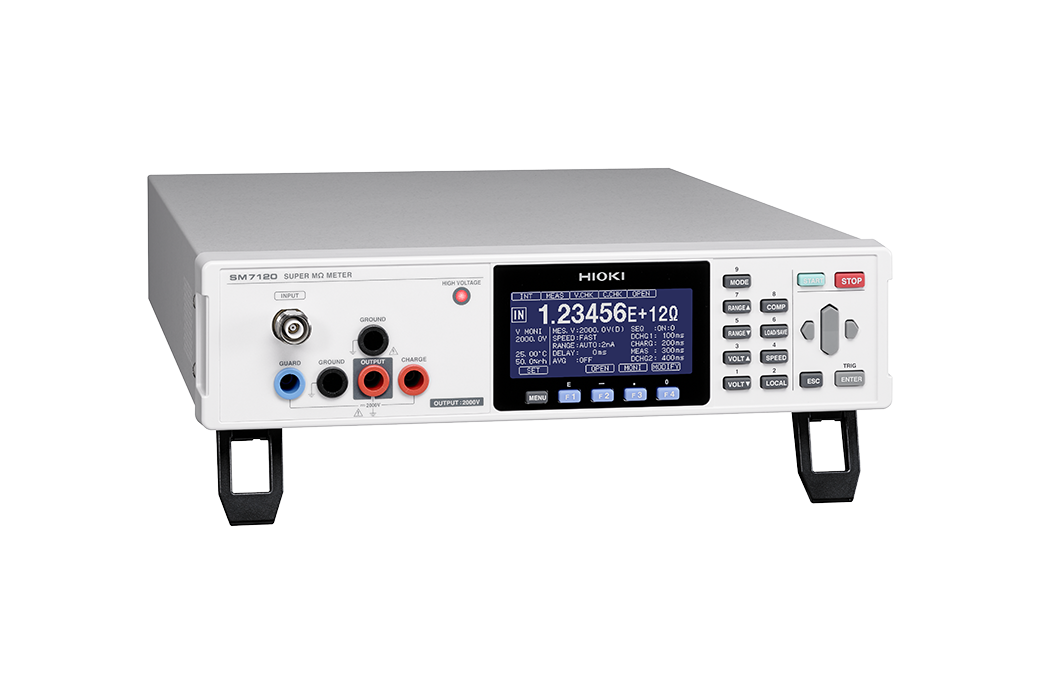

Rapid 6.4ms Super Megohm and Low Current Testing
Number of channels:1 ch
DC current measurement
20pA range (0.1 fA resolution),
Accuracy: ±(2.0 % of rdg. +30 dgt.)
200 pA range (1.0 fA resolution),
Accuracy: ±(1.0 % of rdg. +30 dgt.)
2 nA range (10 fA resolution),
For more details refer datasheet.

Product Overview

Rapid 6.4ms Super Megohm and Low Current Testing
Number of channels:1ch
DC current measurement
20 pA range (0.1 fA resolution),
Accuracy: ±(2.0 % of rdg. +30 dgt.)
200 pA range (1.0 fA resolution),
Accuracy: ±(1.0 % of rdg. +30 dgt.)
For more details refer datasheet.

Product Overview

4ch micro current model
perfect for automated-systems integration
Number of channels:4 ch
DC current measurement
20 pA range (0.1 fA resolution),
Accuracy: ±(2.0 % of rdg. +30 dgt.)
200 pA range (1.0 fA resolution),
Accuracy: ±(1.0 % of rdg. +30 dgt.)
2 nA range (10 fA resolution),
For more details refer datasheet.

Product Overview

Fastest Insulation Tester Assesses in as Fast as 50ms
Measurement items: Insulation resistance
Testing voltage
Measurement range: AUTO/MANUAL setting is possible
25V ≤ V < 100V(2.000/20.00/200.0 MΩ),
100V ≤ V < 500V(2.000/20.00/200.0/2000 MΩ),
500V ≤ V ≤ 1000V(2.000/20.00/200.0/4000 MΩ)
Basic accuracy    ±2 % rdg. ±5 dgt.
For more details refer datasheet.

Product Overview

Leak Current Measurement,
An Essential Part of Electrical Safety
Measurement methods
Measurement of voltage drop simulated resistance points,
Calculation and display of current values,True rms,
Measurement unit floats relative to instrument ground.
Measurement modes
Leak current measurement, voltage measurement,
safety conductor current measurement
For more details refer datasheet.

Product Overview

Leak Current Measurement,
An Essential Part of Electrical Safety
Measurement methods
Measurement of voltage drop simulated resistance points,
Calculation and display of current values,True rms,
Measurement unit floats relative to instrument ground.
Measurement modes
Leak current measurement, voltage measurement,
safety conductor current measurement
For more details refer datasheet.

Product Overview

Field-capable, Fast-working
Extensive measurement functionality
Measurement parameters
Ground resistance measurement:
4-pole, 3-pole, 2-pole,MEC function,
clamp-on measurement (two clamps)
Soil resistivity measurement: 4-pole method
Ground potential measurement
For more details refer datasheet.

Product Overview

Digital Multi-Range Portable Meters are ideal for
continuous AC TRMS and DC measurements.
These precision meters are of Class 0.5 and have a
backlight display with annunciators for ease of reading.
5 Digits (Except for 750V AC)
0.0001 to 1 Count Resolution (Depending on Range)
1" / 25.4mm Digit Display
Sampling Rate : 3 Samples / Sec
Accuracy : ± (0.5% rdg + 3 dgt)
Maximum Overload :1.2 Times (Continuous)
Polarity Indication :"-"for Negative Input
Power :1.5V 'AA' Battery x 4 pcs
Power :6V DC Adaptor (Optional)
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Manual Ranging Digital Multimeters
2000 Counts
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 10A
Battery Test (1.5V, 9V)
Resistance upto 2MΩ
Audible Continuity
Diode Test
hFE Test (Transistor Test)
Data Hold
LCD with Backlight
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts Autoranging Digital Multimeter
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 10A
AC Current upto 10A
Resistance upto 40MΩ
Capacitance upto 200.0µF
Frequency upto 10.00MHz
Duty Cycle 0.1% ~ 99.9%
Diode Test
Audible Continuity
For more details refer datasheet

Product Overview

3 Digits 6000 Counts Autoranging Digital Multimeter
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 10A
AC Current upto 10A
Resistance upto 60MΩ
Capacitance upto 9.999mF
Frequency upto 10.00MHz
Duty Cycle 0.1% ~ 99.9%
Temperature
Diode Test
Audible Continuity
For more details refer datasheet

Product Overview

4 Digits 9999 Counts Auto & Manual
Ranging Digital Multimeters
DC Voltage upto 999.9V
AC Voltage upto 750.0V
DC Current upto 9.999A
AC Current upto 9.999A
Resistance upto 9.999MΩ
Capacitance upto 9.999mF
Frequency upto 9.999MHz
Duty Cycle 1% ~ 99%
Square Wave Output
Diode Test
For more details refer datasheet

Product Overview

4 Digit 9999 Count TRMS Autoranging Pocket Size DMM
DC Voltage upto 999.9V
AC Voltage upto 750.0V
DC Current upto 9.999A
AC Current upto 9.999A
Resistance upto 99.99MΩ
Capacitance upto 9.999mF
Frequency upto 9.999MHz
Duty Cycle 1% ~ 99%
Temperature
Diode Test
Audible Continuity
For more details refer datasheet

Product Overview

3 Digits 6000 Counts Autoranging DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 10A
AC Current upto 10A
Resistance upto 20MΩ
Diode Test
hFE Test (Transistor Test)
Continuity Test(LED,Buzzer & EF Strength)
NCV (LED, Buzzer & EF Strength)
LCD with Backlight
For more details refer datasheet

Product Overview

3 Digits 6000 Counts Autoranging DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 10A
AC Current upto 10A
Resistance upto 60MΩ
Capacitance upto 100.0mF
Frequency upto 10.00MHz
Duty Cycle 1% ~ 99%
Temperature
Diode Test
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 20A
AC Current upto 20A
Resistance upto 200MΩ
Audible Continuity
Diode Test
hFE Test (Transistor Test)
Data Hold
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Autoranging DMM
Auto / Manual Ranging,DC Voltage upto 1000V
AC Voltage upto 750V,DC Current upto 10A
AC Current upto 10A
Resistance upto 20MΩ
Temperature
Diode Test
Audible Continuity
Data Hold
LCD Display
For more details refer datasheet

Product Overview

3 Digits 6000 Counts Autoranging DMM
DC Voltage upto 1000V,AC Voltage upto 750V
DC Current upto 20A,AC Current upto 20A
Resistance upto 60MΩ,Capacitance upto 9.999mF
Frequnecy 10.00MHz,Duty Cycle 0.1% ~ 99.9%
Diode Test
Audible Continuity
Data Hold
LCD with Backlight
Auto Power Off
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts Auto/Manualranging DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 20A
AC Current upto 20A
Resistance upto 40MΩ
Capacitance upto 100µF
Frequency upto 9.999MHz
Duty Cyle 0.1% ~ 99.9%
Temperature
For more details refer datasheet

Product Overview

3 Digits 6000 Counts Autoranging DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 20A
AC Current upto 20A
Resistance upto 60MΩ
Capacitance utpo 9.999mF
Frequency upto 10.00MHz
Duty Cycle 0.1% ~ 99.9%
LCD with Backlight
Auto Power Off
For more details refer datasheet

Product Overview

3 Digits 6600 Counts Autoranging DMM
Auto / Manual Ranging
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 20A
AC Current upto 20A
Resistance upto 60MΩ
Capacitance upto 9.999mF
Frequency upto 10.00MHz
Duty Cycle 0.1% ~ 99.9%
For more details refer datasheet

Product Overview

4½ Digits 20000 Counts Autoranging DMM
Auto / Manual Ranging
DC Voltage upto 1000.0V
AC Voltage upto 750.0V
DC Current upto 10.000A
AC Current upto 10.000A
Resistance upto 199.99MΩ
Capacitance upto 9.999mF
Frequency upto 9.999MHz
Duty Cycle 1% ~ 99%
Audible Continuity
For more details refer datasheet

Product Overview

4½ Digits 20000 Counts Manual DMM
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 20A
AC Current upto 20A
Resistance upto 20MΩ
Capacitance upto 200µF
Frequency upto 20kHz
hFE Test (Transistor Test)
Infrared Remote Control Check
For more details refer datasheet

Product Overview

Automatic Terminal Blocking Mechanism DMM
3½ Digits 2000 Counts
DC Voltage upto 1000V
AC Voltage upto 700V
DC Current upto 20A
AC Current upto 20A
Resistance upto 2MΩ
Frequency upto 20KHz
Duty Cycle 1% ~ 99%
Pulse Width 0.1mS ~ 999.9mS
Rotational Speed (RPM)
LCD Display with Backlight
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Auto Ranging Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 20MΩ
Audible Continuity
Diode Test
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 20MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 4mF
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer, EF Strength)
Low Battery Indication
Jaw Opening: Cable Dia.30mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Frequency upto 1MHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts TRMS
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Frequency upto 1MHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts TRMS Clamp Meter
AC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 4mF
Frequency upto 4KHz
Resistance upto 40MΩ
Audible Continuity
Backlight Display
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Smart Digital clamp Meter
Auto Selection of ACA, ACV, DCV
AC Current upto 400A (Auto Ranging)
AC Voltge upto 600V (Auto Ranging)
DC Voltge upto 600V (Auto Ranging)
Resistance upto 20MΩ (Auto Ranging)
Data Hold for Resistance & Continuity
Hand Free Operation without Rotary Switch
Tool Kit Friendly Size
Low Battery Indication
Jaw Opening :Cable Dia. 25mm (max.)
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts Digital Clamp Meter
Manual Ranging
AC Current upto 1000A (50Hz ~ 60Hz)
AC Voltage upto 750V (45Hz ~ 450Hz)
DC Voltage upto 1000V
Resistance upto 20KΩ
Over Load Protection
Over Volt Protection
Audible Continuity
Low Battery Indication
Jaw Opening: Cable Dia.53mm (max.)
For more details refer datasheet

Product Overview

3½ Digits 2000 Counts TRMS Digital Clamp Meter
Auto / Manual Ranging
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Audible Continuity
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Capacitance upto 600µF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99%
Resistance upto 60MΩ
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Capacitance upto 600µF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99%
Resistance upto 60MΩ
Backlight Display
Torchlight for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 52mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4200 Counts Clamp Meter
AC Current upto 1000A
AC Voltage upto 750V
DC Voltage upto 1000V
Resistance upto 40MΩ
Frequency upto 9.999MHz
Duty Cycle 1% ~ 90%
Audible Continuity
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia.55mm (max.)
For more details refer datasheet

Product Overview

3 5/6 Digits 6000 Counts TRMS clamp Meter
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 60mF
Frequency upto 1MHz
Duty Cycle 0.1% ~ 99.9%
Resistance upto 60MΩ
Torch Light for Clamp
NCV (LED, Buzzer & EF Strength)
Low Battery Indication
Jaw Opening : Cable Dia. 25mm (max.)
For more details refer datasheet

Product Overview

3 5/6 Digits 6000 Counts TRMS Clamp Meter
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Capacitance upto 100mF
Frequency upto 100KHz
Duty Cycle 0.1% ~ 99.9%
Resistance upto 60MΩ
Torch Light for Clamp
NCV (LED, Buzzer & EF Strength)
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4000 Counts Clamp Meter
Auto / Manual Ranging
AC Current upto 600A
DC Current upto 600A
AC Voltage upto 600V
DC Voltage upto 600V
Resistance upto 40MΩ
Frequency upto 500KHz
Duty Cycle 1% ~ 90%
Δ Zero Button (for DCA)
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Product Overview

3¾ Digits 4200 Counts Clamp Meter
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 1200A
AC Current upto 1000A
Resistance upto 40MΩ
Capacitance upto 40µF
Frequency upto 9.999MHz
Duty Cycle 10% ~ 90%
Audible Continuity
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 55mm (max.)
For more details refer datasheet

Product Overview

3-5/6 Digits 6000 Counts TRMS Clamp Meter
Auto / Manual Ranging
DC Voltage upto 1000V
AC Voltage upto 750V
DC Current upto 1200A
AC Current upto 1200A
Resistance upto 60MΩ
Capacitance upto 9.999mF
Frequency upto 10MHz
Duty Cycle 0.1% ~ 99.9%
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 30mm (max.)
For more details refer datasheet

Product Overview

3½ Digits 1999 Counts Clamp Meter
Auto & Manual Ranging
AC & DC Current upto 2000A
AC & DC Voltage upto 2000V
Resistance upto 20MΩ
Audible Continuity
Inrush Current
Backlight Display
Torchlight for Clamp
Auto Power Off
Low Battery Indication
Jaw Opening : Cable Dia. 55mm (max.)
For more details refer datasheet

Product Overview

Ideal for Insulation Resistance Measurement
Single Person Push Button Operation
High Accuracy ± 5% of Indicated Value in Effective Range
Scale Length :80 mm (approx)
Terminal Voltage:> 85% of Rated Voltage for Insulation Resistance
Measurement from 10% to 100% of the Insulation Resistance Range
ABS Resin Yellow Case with Polycarbonate Meter Front Cover
Meets Requirement of IEC 61010, Installation Category II,
Designed to Generally Confirm to IS 10656-1983
7 Models with various Voltage to MOhm Ranges
Battery Adaptor (Optional) for MC-900BA Series
For more details refer datasheet

Product Overview

3½ Digit 15mm LCD Display with Backlight
High Voltage LED Indication
Provision for Using Battery Adaptor
High Accuracy (±3% rdg + 2 dgt)
5 Models with various Voltage and MOhm Ranges
Single Person Push Button Operation
Designed to Generally confirm to IS 10656 - 1983
Meets Requirements of IEC 61010, Installation Category II,
Terminal Voltage more than 85% of rated Voltage for
Insulation Resistance Measurement from 10% to 100%
of the Insulation Resistance Range
Battery Adaptor (Optional) for DIT99BL-BA Series
For more details refer datasheet

Product Overview

2.5kV - 20G Digital Insulation Tester
3½ Digit 1999 Count Large LCD Display
High Accuracy for Insulation Measurement
Range Selection & Single Person Push Button Operation
LCD with Indicator Switch
Data Holding Function, Function Icons on Display
Measurement of AC Voltage upto 600VAC
Auto Range (Insulation Test)
Red LED Indicator for HV (High Voltage)
As per Safety Standard IEC / EN 61010-1 & 61010-31
As per EMC Standard IEC 61326 Class B
For more details refer datasheet

Product Overview

5KV - 200GOHM Digital Insulation Tester
3½ Digit 1999 Count Large LCD Display
Range Selection & Single Person Push Button Operation
LCD with Green Backlight Function with Indicator Switch
Data Holding Function
Display with Annunciators
Measurement of AC Voltage upto 600VAC
Auto Range (Insulation Test)
Red LED Indicator for HV (High Voltage)
Inbuilt Protection Circuit to prevent Reverse Voltage
Battery Operated with AC Adaptor
Suitable for Calculating PI & DAR (Manually)
For more details refer datasheet

Product Overview

3½ Digit 1999 Count Large LCD Display
6 Ranges : 100V,250V,500V,1000V,2500V,5000V DC
LCD with Green Backlight
Data Holding Function
Display with Annunciators
Auto Range (Insulation Test)
Red LED Indicator for HV (High Voltage)
Inbuilt Protection Circuit to prevent
the harm of reverse Voltages
Battery Operated with AC Adaptor
For more details refer datasheet

Product Overview

Field maintenance test & external carrying test
Fixation point on production line or mobile checkout
Warehouse & real time spot or batch inspection
Basic measurement accuracy 0.1% & speed upto 10 meas / sec
Large LCD display with bright white backlight
Ultra low power consumption,
battery powered for 24 hours of continuous use
Automatic identification function (Ai).
Percentage display & 4 tolerance comparator:1%,5%,10% & 20%
9V battery & External power supply
For more details refer datasheet

Product Overview

MECO ABM18 is a portable Automobile Battery Tester
which can check the capacity condition of different
types of Motorcycle and Motorcar batteries from 2 to 200Ah.
The product consists of a Load Resistor and Testing Clip.
The state of the battery is indicated on the meter dial as
'FULLUP' (White), 'NORMAL' (Green),'RECHARGE' (Yellow),
'DISCHARGE' (Red) directly.
Rated Voltage of Battery to be Tested : 2, 6, 12V DC
Rated Capacity of Battery to be Tested : 2 - 200Ah
Dimensions : 225 x 124 x 68mm (approx)
For more details refer datasheet

Product Overview

Battery Capacity (Impedence) Tester for Batteries upto 500Ah
Memory & Read Function
Right Device to know the TRUE -LIFE of Battery Capacity
(Resistive / Voltage) Simultaneously Measure
On - Line Testing without shutting down battery
Built - in Comparator Function
Rates Conditions as PASS, WARNING or FAIL
Datalogging Memory Function
Compact and lightweight
RS-232 Interface & Software
Auto Power Off
For more details refer datasheet

Product Overview

Battery Capacity (Impedence) Tester with DC
Current Adaptor for Batteries upto 1200Ah
Memory & Read Function
Right Device to know the TRUE -LIFE of Battery Capacity
(Resistive/Voltage/Current & Temperature) Simultaneously
On-Line Testing without shutting down battery
Built-in Comparator Function
Measure Battery Charge / Discharge Capacity (Ah)
Measure Battery State of Charge SOC (%)
Rates Conditions as PASS, WARNING or FAIL
Auto Datalogging Micro SD Card 4GB upto 99 Blocks
Compact and lightweight
USB Interface & Software
For more details refer datasheet

Product Overview

Meco VBSM6246 is a Vehicle Battery System Meter
Display of Battery Condition [Good/Ok/Pay Attention/Replace]
Overload Protection to ensure Operator Safety
Loose Lead Detection
Reverse Polarity Protection
Internal Unit Conversion CCA/IEC/EN/DIN
Battery Recharge Indicator,
Detects and Display Bad Cell
CCA Range : 100 ~ 1700
IEC Range : 100 ~ 1000
EN Range : 100 ~ 1700
For more details refer datasheet

Product Overview

Meco 4671 is a Leakage Current Tester
10µA Ultra High Resolution
Large Conductor Diameter(30mm)
AC Current in 5 Ranges(40mA,400mA,4A,40A,60A)
Wide Frequency Response(40Hz-1KHz)
ACA, ACV, Ω and Continuity
Large 3¾ Digit LCD (4000 Count)
40 Segment Fast Bargraph Display (20 times/sec.)
Data Hold and Max / Min Hold
Relative Measurement
600 Vrms Overload Protection in Resistance Range
For more details refer datasheet

Product Overview

Meco 4671A is a Leakage Current Tester
10µA Ultra High Resolution
Large Conductor Diameter (30mm)
AC Current in 4 Ranges (20mA, 200mA, 2A, 60A)
Wide Frequency Response (40Hz-400Hz)
AC A, AC V, DC V
Large 3½ Digit LCD (1999 Count)
Data Hold
Low Battery Indication
Auto Power Off
For more details refer datasheet

Product Overview

Meco 4680BL/4680BLC is a Clamp On Earth Tester
Non Contact Ground Resistance Measurement
No Auxiliary Electrodes Needed
Data Storing Memory
Data Hold, Noise Signal
Ground Resistance Measurement 0.01Ω ~ 1000Ω
Suitable for Earthing Strip of 65mm x 32mm
Leakage Current (0.5mA ~ 30.00A)(Model : 4680BLC)
Auto Ranging
Continuity Loop Test
For more details refer datasheet

Product Overview

Meco 4680/4680B is a Clamp On Earth Tester
Non Contact Ground Resistance Measurement
No Auxiliary Electrodes Needed
Recording 116 Sets of Memory
Ground Resistance Measurement 0.025Ω ~ 1500Ω
Suitable for Ground Wire upto ø23mm(Model :4680)
Suitable for Ground Wire upto ø34.5mm(Model :4680B)
Leakage Current (0.300mA ~ 30.00A)(Model :4680)
Leakage Current (0.300mA ~ 35.00A)(Model :4680B)
Programmable Data Logging
Continuity Loop Test
For more details refer datasheet

Product Overview

TTR8100 ensures the Correct Turn Ratio and Quality of the Transformer.
Measurement of 1 Φ and 3 Φ Transformer/VT/CT Turns Ratio
VT/PT Ratio 0.8~2000,Ct Raio 0.8~2000
Ten Test Frquencies (50 ~ 400 Hz)
9 Types of 3 Φ Winding Connection pre - installed
Wireless Blue Tooth Communication with PC
Select Filter to Remove Field noise (Slow, Normal, Fast)
Record with Date and Time Stamp
Powerful Lithium Battery (3400mAH) with built-in Charging Circuit
PC Application Software Included
For more details refer datasheet

Product Overview

930T is a Digital LUX Meter with Flexible Sensor
Functions: MAX / MIN, Backlight, Auto Power Off
with Disable Feature, Data Hold
Range: 0.1 ~ 200,000 lux
Accuracy: ±3% + 30 dgt
Resolution: 0.1 lux or 0.1 fc
Power: 1.5V AAA x 2 Batteries
Dimensions: 157x54x34mm(approx.)
Weight: 70gms Including Battery(approx.)
Accessories: Carrying Case, Inst. Manual,
1.5V AAA x 2 Batteries (installed)
For more details refer datasheet

Product Overview

930P is a Digital LUX Meter
Functions: MAX/MIN,Backlight,Auto Power Off
Range : 0~200,000 lux/0~20,000 fc
Accuracy : ±5% rdg + 10dgt
(<10.000 lux / fc) ± 10% rdg + 10 dgt
Resolution : 0.1 lux or 0.1 fc
Selection : lux / fc
Power : 9 V Battery
Dimensions:190 x 56 x 39mm (approx.)
Weight: 135gms Including Battery (approx.)
Accessories: Carrying Case,Inst.Manual,
9V Battery (installed)
For more details refer datasheet

Product Overview

930K is a Digital LUX Meter
Lux: 20.00K ~ 200.0K
Spectral Measurement Range: 320~730nm
Unit: Lux / Fc
Auto Ranging
MIN/MAX, Data Hold
Backlight
Auto Power Off
Low Battery Indicator
Weight : 110gms Including Battery(approx.)
Dimension : 155 x 40 x 40mm (approx.)
For more details refer datasheet

Product Overview

Non-contact Infrared Thermometer
Sharply Focus on Measurement Spots with
Two-Beam Laser Marker,Ideal for HVAC Applications
Measurement temperature range:-60.0˚Cto550.0˚C,0.1˚C
Response time:1 sec (90%)
Measurement wavelength:8 to 14 µm
Thermal emissivity compensation:ε=0.10 to 1.00
Sighting:Two-beam laser marker Max 1 mW (class 2),Red
For more details refer datasheet.

Product Overview

Precise non-contact measurements
Body Temperature Measuring Range
36°C ~ 42.9°C (97°F ~ 109°F)
Body Temperature Measuring Accuracy
± 0.3°C (± 0.6°F)
Surface Temperature Measuring Range
0~100°C (32 ~ 212°F)
Reduces risk of virus spread
Fast response (0.5 Sec.)
34 Measuring Data can be stored
For more details refer datasheet.

Product Overview

MBT-99 is a Infrared (Body/Forehead) Thermometer
Handheld
Precise non-contact measurements
Measures temperature from distance
Reduces risk of virus spread
Body Temperature Measurements
Surface Temperature Measurements
Fast response (5 sec.)
32 Measuring Data can be stored
LCD display with Green,Orange and Red backlights
For more details refer datasheet.

Product Overview

IRT1050P Is A Industrial Infrared Thermometers
Range: -50°c~1050°C/-58°F~1922°F
Distance Spot Ratio :50:1
Emissivity: 0.10~1.00(Adjustable)
C° / F° Selection
Auto Power Off
Low Battery Indication
Backlight Display
MAX,MIN,DIF,AVG Function
Data Storage
High/Low Temperature Alarm Setting
For more details refer datasheet.

Product Overview

IRT600TC Is A Industrial Infrared Thermometers
Range: -50°C ~ 600°C/-58°F ~ 1112°F
Distance Spot Ratio : 12:1
Emissivity : 0.1 ~ 1.0 (Adjustable)
°C / °F Selection
Laser Switch
Auto Power Off
Low Battery Indication
Backlight Colour Display
For more details refer datasheet.


Product Overview

RISH Max-10 digital multimeters are suited for
universal, general applications in the electrical
and electronics fields, as well as in radio and
television service, training and education
Relative measurement (REL)
Automatic/manual measuring range selection
Temperature Measurement: range 0°C to +1300°C.
Overload warning
AC voltage>750V,DC Voltage>1000V,
AC/DC mA current>400.0mA,AC/DC current>10.00A.
Protective cover for rough operating conditions
For more details refer datasheet.

Product Overview

RISHABH 410 digital multimeter is suited for universal,
general applications in the electrical and electronics
fields for training and education.
Functionally Enhanced Dual Display
Digital Display with 3¾ Digit, 4000 Count
0.5% basic DC accuracy
Direct and alternating voltages from 100μV...1000V
Direct and alternating currents from 10μA...10.00A
Resistance from 1Ω...40.00MΩ
Capacitance from 1pF...200.00 microF
Diode measurement and continuity testing
Temperature measurement with K type Thermocouple
For more details refer datasheet.


Product Overview

RISHABH 612 digital multimeter is suited for universal,
general applications in the electrical and electronics
fields for training and education.
Direct and alternating voltages from 100μV ... 1000V
Direct and alternating currents from 10μA ... 10.00A
Resistance from 1Ω... 60.00MΩ.
Capacitance from 1pF ... 40.00 mF with zero correction
Frequencies from 10.00Hz ... 10MHz
Diode measurement and continuity testing
Duty cycle (%) measurement
Temperature measurement with K type Thermocouple
For more details refer datasheet.

Product Overview

RISHABH 613 digital multimeter is suited for universal,
general applications in the electrical and electronics
fields for training and education.
Direct and alternating voltages from 100μV ... 1000V
Direct and alternating currents from 10μA ... 10.00A
Resistance from 1Ω... 60.00MΩ.
Capacitance from 1pF ... 40.00 mF with zero correction
Frequencies from 10.00Hz ... 10MHz
Diode measurement and continuity testing
Duty cycle (%) measurement
Temperature measurement with K type Thermocouple
For more details refer datasheet.

Product Overview

RISHABH 615 digital multimeter is suited for universal,
general applications in the electrical and electronics
fields for training and education.
Direct and alternating voltages from 100μV ... 1000V
Direct and alternating currents from 10μA ... 10.00A
Resistance from 1Ω... 60.00MΩ.
Capacitance from 1pF ... 40.00 mF with zero correction
Frequencies from 10.00Hz ... 10MHz
Diode measurement and continuity testing
Duty cycle (%) measurement
Temperature measurement with K type Thermocouple
For more details refer datasheet.


Product Overview

RISHABH 616 is a rugged,TRMS,Enhanced dual display,
6600 count, portable multimeter,
a perfect tool for wide range of applications.
Direct and alternating voltages from 100μV ... 1000V
Direct and alternating currents from 10μA ... 10.00A
Resistance from 1Ω... 60.00MΩ.
Capacitance from 1pF...40.00mF with zero correction
Frequencies from 10.00Hz ... 10MHz
Diode measurement and continuity testing
Temperature measurement with K type Thermocouple
Peak value measurement.
For more details refer datasheet.

Product Overview

Rishmulti 14 S is Analog Digital Multimeter
which measures VAC, VDC,VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement.
Automatic Terminal Blocking System (ABS)
Interface and Software RISH com 100
MIN/MAX Value Storage
Indication Of Negative Values On The Analog Scale
Automatic Data Hold
Auto-ranging / Manual Range Selection
For more details refer datasheet.

Product Overview

RISH MIT 30 is Analog Digital Multimeter
with insulation resistance measurement ,
which measures VAC, VDC, VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement with clip-on
sensor and insulation resistance measurement.
Insulation resistance measurement up to 3G .
Route mean square value with distorted wave form.
AC Current measurement with clip-on sensor
This permits resting for short circuit and open circuit.
AUTO and MANUALranging modes.
For more details refer datasheet.

Product Overview

Rishmulti 12 S is Analog Digital Multimeter
which measures VAC, VDC,VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement.
Automatic Terminal Blocking System (ABS)
Interface and Software RISH com 100
MIN/MAX Value Storage
Indication Of Negative Values On The Analog Scale
Automatic Data Hold
Temprature Management
Auto-ranging / Manual Range Selection
For more details refer datasheet.

Product Overview

Rishmulti 13 S is Analog Digital Multimeter
which measures VAC, VDC,VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement.
Automatic Terminal Blocking System (ABS)
Interface and Software RISH com 100
MIN/MAX Value Storage
Indication Of Negative Values On The Analog Scale
Automatic Data Hold
Temprature Management
Auto-ranging / Manual Range Selection
For more details refer datasheet.

Product Overview

Rishmulti 15 S is Analog Digital Multimeter
which measures VAC, VDC,VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement.
Automatic Terminal Blocking System (ABS)
Interface and Software RISH com 100
MIN/MAX Value Storage
Indication Of Negative Values On The Analog Scale
Automatic Data Hold
Temprature Management
Auto-ranging / Manual Range Selection
For more details refer datasheet.

Product Overview

Rishmulti 16 S is Analog Digital Multimeter
which measures VAC, VDC,VAC+DC,Frequency,
mA DC, mA AC+DC,Resistance, continuity,
Diode,Farad,AC current measurement.
Automatic Terminal Blocking System (ABS)
Interface and Software RISH com 100
MIN/MAX Value Storage
Indication Of Negative Values On The Analog Scale
Automatic Data Hold
Temprature Management
Auto-ranging / Manual Range Selection
For more details refer datasheet.

Product Overview

RISH Multi 20 Multimeter is 5 ¾ digit
high performance precision instruments for
laboratory use,as well as for service and training.
Convenient Triple Display
High Resolution & Precision
RMS Value with Distorted Waveshape
Additional Functions
Overload Protection
Measuring Category
Automatic Blocking Sockets (ABS)
Backlit Display
For more details refer datasheet.

Product Overview

The new 6012/6013/6015/6016 Bluetooth multimeter
is advanced instrument meeting the needs of today’s
technology with a Bluetooth communication and
Android based application for mobile phones,
so now all the data is made available on your mobile screen.
Data logger & View function (up to 32000 readings–6016,6015)
Bluetooth Connectivity with Mobile via android App & PC
Data logging facility in mobile and setting of
parameters via mobile through App.
100kHz bandwidth for voltage measurement (6016)
1kHz Low Pass Filter mode (6013, 6015, 6016)
GO-NO-GO function
VAC with 1MOhm impedance 4-20mA/0-20mA scale type measurement
Single fuse for mA & A
For more details refer datasheet.

Product Overview

The Rishabh 6012 is a digital multimeter
with an AC voltage range of 6V to 1000V.
It's designed for professional use and offers safety,
high resolution, and reliability.
True RMS Digital Multimeter
Plug and Play USB connectivity with PC
GO-NO-GO function
Temperature measurement with Pt100 & Pt1000 sensors
External power adapter for long hours of measurements
Current measurement through external Clamps
Conductance Measurement
For more details refer datasheet.


Product Overview

The RISHABH 6013 new multimeter is made for
professional use that offers safety, high resolution,
large range count,reliability, ruggedness,
a complete tool for test automation and is
equipped with Direct current measurement upto 16A
True RMS Digital Multimeter
Plug and Play USB connectivity with PC
Temperature measurement with J, K sensors
External power adapter for long hours of measurements
Current measurement through external Clamps
Frequency / Time Period Measurement
Direct current measurement upto 16A
For more details refer datasheet.

Product Overview

The RISHABH 6015 new multimeter is made
for professional use that offers safety,
high resolution,large range count,reliability,
ruggedness, a complete tool for test automation
and is equipped with more than 30 different
measuring functions alongwith data logging facility
& plug and play USB for connection with PC
Data logger & View function (up to 32000 readings)
Plug and Play USB connectivity with PC
VAC with 1MOhm impedance 4-20mA/0-20mA scale type
Temperature measurement with J,K,Pt100 & Pt1000
External power adapter for long hours of measurements
For more details refer datasheet.

Product Overview

The RISHABH 6016 new multimeter is made
for professional use that offers safety,
high resolution,large range count,reliability,
ruggedness, a complete tool for test automation
and is equipped with more than 30 different
measuring functions alongwith data logging facility
& plug and play USB for connection with PC
Data logger & View function (up to 32000 readings)
Plug and Play USB connectivity with PC
VAC with 1MOhm impedance 4-20mA/0-20mA scale type
Temperature measurement with J,K,Pt100 & Pt1000
External power adapter for long hours of measurements
For more details refer datasheet.


Product Overview

The new Rishabh Young/iYoung Multimeter are compact,
Handy & Trendy multimeters specially targeted
for applications of Electrical contractors,
Direct and alternating voltages from 100μV ... 1000V
Direct and alternating currents from 10μA ... 10.00A
Resistance from 1Ω... 60.00MΩ.
Capacitance from 1pF ... 40.00 mF with zero correction
Frequencies from 10.00Hz ... 10MHz
Diode measurement and continuity testing
Duty cycle (%) measurement
Temperature measurement with K type Thermocouple
Peak value measurement.
For more details refer datasheet.


Product Overview

RISH Clamp ES1000 AC/ES400 AC is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
AUTO POWER OFF
Relative Measurement
Hold Function
Hz / Duty
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Product Overview

Rish clamp 1000A/300A is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
AUTO POWER OFF
Relative Measurement
Hold Function
Hz / Duty
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Product Overview

RISH Clamp 1000A/300A AC/DC is a highly innovative design
for features those increases safety and comfort of user.
Large Jaw Opening
Narrow Body
High Accuracy for low current measurement
User selectable Backlit
Temperature measurement
Auto Power Off
Continous On Mode
DATA Hold Function
MIN,MAX Function
NULL ZERO Correction for Resistance
For more details please refer datasheet.

Product Overview

RISH Clamp POWER 1000A/400A measures,
calculate and displays important electrical parameters
of single phase or three phase power system. It also
features Resistance, continuity, diode
and non contact voltage detection
AC&DC Voltageupto1000V
AC&DCCurrent upto 1000A/400 A
Inrush/Peak ValueMeasurement
Active,Reactive andApparentPower
Horse PowerMeasurement
Measure up to49thHarmonics
PhaseAngle
For more details please refer datasheet.

Product Overview

Agam ALCT 66 A is a high-accuracy
high sensitivity leakage current clamp meter
Suitable for applications in Utilities,Railways,
Communication industry,Oil fields,Building wiring Segment,
Processing industries, etc
Compact size leakage clamp meter
Current measurement from 1µA to 60A
Large jaw opening
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for reportsrmonics
For more details please refer datasheet.

Product Overview

Agam ALCT 606A AC is a high-accuracy
high sensitivity leakage current clamp meter
Suitable for applications in Utilities,Railways,
Communication industry,Oil fields,Building wiring Segment,
Processing industries, etc
Compact size leakage clamp meter
Current measurement from 0.1mA to 600A
Large jaw opening
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for reports
For more details please refer datasheet.

Product Overview

ALCT 60A is designed for on-line measurement
of AC/DC leakage current, which adopts latest
CT and digital integration technology.
Lean clamp is suitable for cables such as,
automation panels, control panels, electric metering system,
high-speed rail system, automobile circuit maintenance .
Compact size leakage clamp meter for easy portability
Current measurement from 1mA to 60A AC/DC
Data storage facility upto 99 records
Complies with CE, CAT protection
Software facility for online reports generation
For more details please refer datasheet.

Product Overview

RISH Clamp SOLAR has DC voltage measurement upto 1500V DC,
to measure inverter input voltage at solar power plants
and current measurement upto 1500 A  AC/DC.
Measurement range upto 1500V DC to check solar inverter input voltage
Extended current range upto 1500A AC (Trms)/DC for
measurement at high current carrying applications
Patented trigger at back side so as to keep a
safe distance from loads and offer operational efficiency
Double mould casing to offer higher grip while holding the meter
Consists of AC voltage upto 1000V (Trms), resistance, continuity,
capacitance, frequency, diode, duty cycle, temperature, etc.
Complies with CE, IP 50, CAT IV 600V protection
For more details please refer datasheet.

Product Overview

The Rish HVT 5kV AC offers a 5kV test voltage to determine
the withstand strength of electrical insulation for
the normally occurring over voltage transients.
Voltage range up to 5kV AC for testing various devices
Selectable current range up to 50/100mA to offer testing
Safety features - Zero start interlock, Overload protection,
L&N reversal protection, Earth Open protection,
HT ON alarm to ensure user safety while testing
Rugged design to work well in harsh industrial environments
Compact size with unique design & good ergonomics,
making it user-friendly like never before
For more details please refer datasheet.

Product Overview

ITHV series is a high voltage portable Insulation Tester
used to measure the insulation for cables, motors, electrical
wiring and other devices capable of carrying the rated voltage.
Rugged design to withstand industrial environment
Polycarbonate body with collapsible handle
In-built hand-driven brushless AC generator
and static rectifier to supply Stabilized DC voltage
Guard terminal to eliminate surface leakage current
Cross coil movement, sintered anti-friction bearings
and delrin-moulded gears ensures trouble free operation
Option 1 : Single Voltage, single IR measurement range
Option 2 : Dual Voltage, dual IR measurement range
For more details please refer datasheet.

Product Overview

ITMR series is a low voltage multi range portable
Insulation Tester which offers the measurement of
insulation in transformers,motors,generators,domestics appliances.
Housed with robust Polycarbonate material case
which offers high ruggedness to instrument
In-built hand-driven brushless AC generator and
static rectifier to supply Stabilized DC voltage
Guard terminal to eliminate surface leakage current
Cross-coil movement, sintered anti-friction bearings,
and Delrin-moulded gears ensure trouble-free operation
66mm logarithmic scale confirms to IS 2992-1987
World Class Aesthetics, for better user experience
For more details please refer datasheet.

Product Overview

ITI series is a low voltage insulation tester
which is best suited for Measurement of the
insulation resistance on electrical equipment
and system under test upto 1000V
For testing motors,transformers,generators,switch gears
For testing house hold appliances
Measurement of insulation of cables for on-site
maintenance and service departments.
Rugged design to withstand industrial environment
Polycarbonate body with collapsible handle
Guard terminal to eliminate surface leakage current
66mm logarithmic scale confirms to IS 2992-1987
For more details please refer datasheet.

Product Overview

Rish INSU 10Dx+ is designed to perform at power utilities
where induction field is very high. Its high noise immunity
and user selectable digital filters makes it most robust and
reliable instrument with user selectable test voltages.
Selectable short circuit current 1.2mA, 3mA and 6mA
Test voltage can be selected in steps of 10V from
100V to 1000V & in steps of 25V from 1000V to 10000V
Insulation resistance measurement upto 20T Ω
User selectable digital filters
Operates on rechargeable Li-ion battery and Mains as well
Bluetooth connectivity for data logging
For more details please refer datasheet.

Product Overview

Rish Insu 5Dt is a 5KV Digital Insulation Tester
with selectable test voltage upto 5KV and
Insulation Resistance measurement upto 2 TΩ.
Selectable SC current i.e 1.2mA and 3mA
User selectable digital filters
Operates on rechargeable Li-ion battery and Mains as well
Bluetooth  or USB connectivity for data logging
Touch screen TFT colour Display
Insulation leakage current measurement
PI, DAR, Step voltage & Ramp Test
Three programmable timers
For more details refer datasheet.

Product Overview

Rish Insu 5Dx+ is a Digital Insulation Tester
with selectable test voltage upto 5kV and
Insulation Resistance measurement upto 10 TΩ.
Selectable short circuit current 1.2mA, 3mA and 6mA
User selectable digital filters
Operates on rechargeable Li-ion battery and Mains as well
Bluetooth connectivity for data logging
Touch screen TFT colour display
Test voltage can be selected in steps of
10V from 100V~1000V & in steps of 25V from 1000V~5000V
Measurement of DC and AC voltages from 20V~600V
Insulation leakage current measurement
PI, DAR, DD, Step voltage & Ramp Test
For more details refer datasheet.


Product Overview

ITS series is a low voltage portable Insulation Tester.
They are suitable for the measurement of
insulation resistance of LT Transformers,Motors,
Generators,Domestics appliances,domestic,industrial wiring,cables.
Rated Voltages: 500V, 1000V; Insulation Resistance: 100MΩ, 200MΩ
Option ITC: Continuity measurement (0 to 5KΩ)
The compact instrument offers easy portability
Self-powered (hand crank generator) instrument
Easy to rotate generator with self-lubricating molded gears
and oil impregnated bushes to eliminate mechanical maintenance
Product design and performance in compliance to IS:2992
World Class Aesthetics, for better user experience
For more details Please refer datasheet.

Product Overview

Agam AIT 501 is the compact insulation resistance tester
with diagnostic features like PI, DAR.
Robust unit : Ideal for portable testing
Test voltages of 500V,1000V,2500V and 5000V
Insulation Resistance measurement upto 1 TOhm
Automatic(PI),Dielectric Absorption Ratio (DAR)
DC/AC voltage measurements to 600V
To check live voltages if any present in DUT
Autoranging insulation resistance tester
Auto shut down when left idle & Optional Operation on Mains via adapter
Datalogging capabilities and USB interface
Wide LCD with backlit screen, Analog bar graph (30 segment)
For more details please refer datasheet.

Product Overview

ITMR series is a low voltage multi range
portable Insulation Tester which offers
the measurement of insulation in transformers,
motors, generators,or domestics appliances.
Rugged design to withstand industrial environment
Metal body with collapsible Steel handle
In-built hand-driven brush less AC generator
and static rectifies to supply Stabilized DC voltage
Guard terminal to eliminate surface leakage current
Cross coil movement, sintered anti-frtiction bearings
and delrin-moulded gears ensures trouble free operation
For more details please refer datasheet.

Product Overview

ITI Series is a low voltage insulation tester
which is best suited for Measurement of the
insulation resistance on electrical equipment
and system under test upto 1000V, For testing motors,
transformers, generators, switch gears
For testing house hold appliances
Measurement of insulation of cables for on-site
maintenance and service departments.
Rugged design to withstand industrial environment
Metal body with collapsible Steel handle
In-built hand-driven brushless AC generator
Guard terminal to eliminate surface leakage current
For more details refer datasheet.

Product Overview

ITHV Series is a high voltage portable Insulation Tester
used to measure the insulation for cables, motors, electrical
wiring and other devices capable of carrying the rated voltage.
Rugged design to withstand industrial environment
Cross coil movement, sintered anti-friction bearings
and delrin-moulded gears ensures trouble free operation
66mm logarithmic scale confirms to IS 2992-1987
Option 1 : Single Voltage, single IR measurement range
Option 2 : Dual Voltage, dual IR measurement rangeotors, t
Metal body with collapsible Steel handle
In-built hand-driven brushless AC generator
Guard terminal to eliminate surface leakage current
For more details please refer datasheet.

Product Overview

This instrument is suited for the non-destructive measurement of
insulation resistance in electrical systems, at machines and
transformers and in cables, as well as within the electrical
equipment of, for example, locomotives, tram systems and ocean
going vessels, with eight selectable test voltages up to 5kV.
Broad measuring range from 10KOhm to 1TOhm
Test voltages: 100V,250V,500V,1000V,1500V,2000V,2500V,5000v
Measurement to 2000V in accordance with DIN VDE 0413
Measuring range : 100kOhm to 100MOhm (1000V)
Voltage measurement to 2000V
Guard Terminal eliminates surface current
For more details please refer datasheet.


Product Overview

RISH Insu 20 Digital Insulation and Continuity Tester
is suitable for following
Measurement of the insulation resistance on electrically
dead equipment and systems with test voltages up to 1000V.
For testing motors, transformers, generators, switchgears.
For testing of house hold appliances.
Measurement of the insulation resistance of cables.
Very useful for on-site maintenance and service departments.
Analog + Digital Display (Log scale for Insulation Measurement)
User Selectable Backlit Display
Connector jack for External Mains Adapter (Optional)
Test Voltages 50V/100V/250V/500V/1000V
For more details please refer datasheet.

Product Overview

RISH Insu10 Analog-Digital Insulation
and Continuity Tester is suitable for following
Measurement of the insulation resistance on electrically dead
equipment and systems with test voltages up to 1000V.
For testing motors, transformers, generators, switchgears.
Measurement of the insulation resistance of cables.
Very useful for on-site maintenance and service departments.
Analog + Digital Display (Log scale for Insulation Measurement)
User Selectable Backlit Display
Battery Operated
Test Voltages 50V/ 100V/ 250V/ 500V/ 1000V
For more details please refer datasheet.


Product Overview

The Agam earth tester, AET 23 is capable of
performing measurements of both earth resistance
in ohms and also calculates AC earth voltage from 0-200V.
Earth resistance testing can be performed across three ranges
0-20 Ohms , 0-200 Ohms and 0-2000 Ohms.
AET 23 is equipped with limited built-in
memory that can store up to 20 testing results.
This earth resistance tester is also
suitable for use on both 50Hz and 60Hz
Industrial Earth Resistance Testing
Substation Earth Resistance Testing
Earth Voltage Testing
For more details please refer datasheet.

Product Overview

AECT 12 Clamp Earth Resistance Tester is widely used
in the grounding resistance measurement of the
Ulies (Generaon, Transmission, Distribuon),
Telecommunicaons, Meteorology, the industrial and
electrical equipment, etc.
No need for auxiliary electrodes for measurement of
earth resistance in grounding system with loop
Wide earth resistance measurement up to 1500Ω
Internal data logging up to 99 readings for analysis
Wide jaw size of 65x32mm to fit in different conductors/earthing strips
Alarm function with sound and light indication for pass/fail test
For more details please refer datasheet.

Product Overview

ET series are the portable Earth Testers
for measurement of earth resistance and soil resistivity.
The compact design allows the use in
industrial as well as household application.
Confirms to IS 9223-1989
Sintered anti-friction bearing provide smooth
and maintenance free operation
Powered by built in hand operated generator
Direct reading of earth resistance in Ohms
Rugged and sturdy instruments suitable for field application
Housed with robust polycarbonate material case
which offers high ruggedness to instrument
For more details please refer datasheet.


Product Overview

The Digital meter PROGRAMMABLE RISH Eine NX have
been designed for industrial application ,which frequently
require precise and on-site adjustment of the display range. It
can be used in industrial automation and for laboratory uses.
Attractive look with two touch keys.
3 digit or 4 digit ultra bright 7 Segment LED display.
Fast & Easy Installation on panel with click fit arrangement
Ultra bright LED Display
On site programmable PT parameters
On site programmable CT parameters
Enclosure Protection for dust and water
For more details please refer datasheet.


Product Overview

RISH DPM Hz measures important electrical parameters
like Frequency & RPM.
True RMS measurement:
Measures distorted waveform up to 15th Harmonic.
RPM Measurement:
The instrument display Rotation per minutes for
generator applications. Number of poles can be set
digits Ultra Bright LED display:
Display range upto 9999.
Enclosure Protection for dust and water:
Conforms to IP 50 (front face) as per IEC60529
For more details please refer datasheet.

Product Overview

RISH Eine+ has been designed for industrial applications,
which frequently require precise and on-site adjustment
of the display range. It measures electrical DC parameters
like DC voltage and DC current.
Low Back Depth
Rescalable Display range
Function keys
Bent Characteristics
Power Factor Display
Ambient Temperature Indication
Auxillary Supply
4 Full digits Ultra Bright LED display
For more details please refer datasheet.

Product Overview

The digital panel meters RISH Eine DPM
have been designed for industrial  applications,
which  frequently  require  precise  and on-site
adjustment  of  the  display  range.
we can used in industrial automation and for laboratory uses.
RISH Eine DPM measures important electrical parameters in 3 phase
4 Wire,  3 phase  3 Wire and single phase Network &
replaces the multiple analog panel meters.
Fast & Easy Installation on panel with the help of
external swivel screws.
User selectable CT/PT Secondary.
4 Digits ultra bright LED Display
For more details please refer datasheet.


Product Overview

N30U is a 5-Digit 3 coloured LED display meter
programmable as interval or limit in 3 ranges
through PD14 programmer/ LPConfig software.
Universal programmable input and outputs RS485,
Analog & Relay output.
IP10 - from Terminal Side
IP65 - from Frontal Side,
3-colour display (14 mm height),programmable in 3
ranges of the displayed value.
21-point individual characterisƟc(indicaƟon rescaling)
For more details please refer datasheet.

Product Overview

N32H meter is a Programmable digital meter
of destined for DC Circuit parameters.
It has a modern and easy-to-read LCD display
with universal measuring input and inbuilt RS-485 digital output
Voltage measurement ±600V (maximum range display ±1200 v),
current measurement via shunt, power,
energy and capacity measurement of d.c. circuits
Two-line LCD display with high contrast
For more details please refer datasheet.

Product Overview

The N30U meter is destined for the measurement
of temperature, resistance and standard signals
Resistance thermometers: PT100, PT500, PT1000
Thermocouples: J, K, N, E, R, S
Resistance: 400 ohm,4000 ohm
Current: ± 20 mA
Voltage: 0…10 V, -10…60 mV
Output: relay (4),analog (1),digital RS-485/MODBUS(1),
For more details please refer datasheet.

Product Overview

N27P fulfils the requirements for devices
mounted in standard modular switchgears.
Universal measuring input:
1/5 A 100/400 V AC
32/63 A, 100/400 V AC
Direct measurement (up to 63A),
Output:
RS-485 interface with MODBUS protocol,
1 x relay + 1 x analog or 2 x relay,
Modern graphical display in OLED technology,
Programmable current and voltage transformer ratios,
Meter configuration using button or free eCon software
For more details please refer datasheet.

Product Overview

N30P meter is designed to measure
AC voltage,AC current,active, reactive
and apparent power, cos φ, tg φ, φ,
frequency, active, reactive and apparent energy,
15 min. active power, 10 min. voltage, 10 sec.
frequency in single-phase power network.
Highlighted measuring units
4 alarm outputs with signalling by LED diodes,
For more details please refer datasheet.

Product Overview

The N30H meter is destined for the measurement
of DC current and DC voltage up to 5 A and 600 V.
The device fulfils the requirements of installation's
category III for the product designed.
Parameters which can be reprogrammed:
Display colour, individually in three intervals,
Thresholds of displayed overflows,
Precision of displayed results (decimal point),
For more details please refer datasheet.

Product Overview

The N25 Series Designed for measurement of d.c.voltage
or d.c. current,temperature through Pt100
resistance thermometers,J, K thermocouples,
a.c. voltage and a.c. current.
5 LED digit displays with 14 mm digit high.
Parameters programmable by PD14 programmer:
precision of displayed results (decimal point),
measurement averaging time,
recounting of indications (individual characteristic),
automatic or manual compensation: cold junction
temperature for measurement with thermocouples or
wire resistance for measurement with Pt100 (N25T).
For more details please refer datasheet.

Product Overview

NA5PLUS comes with Single Channel input
and NA6PLUS comes with dual Channel.
These Bar-graph meters ensure high measurement
accuracy and clear visualization of the measurements done
3 or 7-colour bargraph with programmable colour switching over.
Logging of the measured signal in porgramed time intervals
Universal measuring input.
Programmable indication characteristic and bargraph magnifier.
Up to 8 programmable alarm outputs.
Arithmetical functions x2, √x.
Communication in Scada systems (rS485/modbus interfaces).
For more details please refer datasheet.

Product Overview

The N30O meter is destined for the measurement of pulses,
frequency, rotational speed, period and worktime.
The meter has 2 counter inputs to co-operate with an encoder.
The meter counts also the actual and total value.
Input:
Number of pulses
Rotational speed
Output:relay(4),analog(1),digital RS-485/MODBUS(1)
For more details please refer datasheet.


Product Overview

The  N27D fulfils the requirements for devices
mounted in standard modular switchgears.
Designed for measurement of RMS current and voltage (AC),
active power and frequency. Thanks to modern design,
Direct measurement up to 63A,
Switched measured value,
4-digit display in yellow colour,
Backlighted indicator of measured value,
Modern design allows for installation of the meter
in modular switchgear in accordance with EN 62208
(meter has a width of 3 modules) on 35 mm rail.
External dimensions: 53 x 110 x 60mm.
For more details please refer datasheet.


Product Overview

N21 is an ideal solution for visualisation of industrial processes.
Universal input, universal supply and modern
OLED display allow to apply meter in many applications.
Relay alarm output.
Universal supply voltage from 24 V up to 230 V AC/DC
Supply of object transducers 24 V DC
Meter configuration through mini-USB
connector with free eCon software.
For more details please refer datasheet.

Product Overview

The N20 meter is a digital programmable panel instrument
designed for measurements of DC voltages,
DC currents or temperature.
Parameters of the N20 meter:
DC current: 0/4...20mA; ±20mA
DC voltage: 0...60mV; 0...10V; ±10V
Protection level ensured by the housing: IP65,
Readout field: 5 three-colour LED displays of 14 mm height,
For more details please refer datasheet.

Product Overview

Indicators of N24 series are designed for measurement
of DC voltage or DC current, temperature from PT100 sensors
and J, K thermocouples, AC voltage and AC current.
4-digit LED display, digits of 20 mm high,
Possible configuration of parameters through
the PD14 programmer and the free delivered eCon Software
Precision of displayed results (decimal point),
Measurement averaging time,
Recounting of indications (individual characteristic),
Automatic or manual compensation: temperature of
cold junction for measurements with thermocouples
or wire resistance for Pt100 sensors (N24T),
For more details please refer datasheet.

Product Overview

The digital panel meters RISH DPM 72 x 144 4½ Digit
have been designed for industrial applications,
which frequently require precise and on-site adjustment
of the display range. It can be used in industrial
automation and for laboratory uses.
Highly adaptable DPMs suitable for a wide
range of measuring applications.
For more details please refer datasheet.

Product Overview

The Digital panel meters RISH DPM 96 x 96 & 48 x 96
4½ Digit have been designed for industrial applications,
which frequently require precise and
on-site adjustment of the display range.
Industrial automation and for laboratory uses.
Auxiliary power supply :
AC: 1) 230V (+10% / -15%).
    2) 110V (+10% / -15%).
DC: 1) 110V (+10% / -15%).
    2) 24V (+/- 15%).
Highly adaptable DPMs suitable for a
wide range of measuring applications.
For more details please refer datasheet.

Product Overview

The digital panel meters RISH DPM 72 X 144 1 PH.
4½ ACI/ACV have been designed for industrial applications,
which frequently require precise and on-site adjustment
of the display range. It can be used in
Industrial automation and for laboratory uses.
AC Current ranges and AC Voltage ranges available.
4 ½ Digit ultra bright Display with 26mm digit height.
For more details please refer datasheet.


Product Overview

RISH DPM 72X144 series measures system active Power
(Import / Export),Reactive Power (Import / Export),
Apparent Power &Power Factor of Three phase and
Single phase Network. It has 4 digit single line
auto ranging LED display with polarity indication.
On site programmable PT/CT ratios
For more details please refer datasheet.

Product Overview

RISH DPM Power 96x96 series measures system active Power
(Import / Export), Reactive Power (Import / Export),
Apparent Power & Power Factor of Three phase and
Single phase Network. It has 4 digit single
line auto ranging LED display with polarity indication
Product Range
Active Power (kW) DPM.
Reactive Power (kVAr) DPM.
Apparent Power (kVA) DPM.
Power Factor (PF) meter.
On Site Programmable PT/CT Ratios
User Selectable CT Secondary 5A/1A
For more details please refer datasheet.

Product Overview

RISH CD30/60 Compact VAF Meter measures electrical
parameters in 1 Phase Network for AC direct current
measurement application.
% THD measurement upto 15th Harmon
True RMS measurement.
2 Line 4 digits ultra bright LED display
Direct current measurement upto 30/60 A depending on model
Fast & Easy Installation on housing with self clicking
For more details please refer datasheet.


Product Overview

RISH OPTIMA VAF measures important electrical parameters
in 3 phase 4 Wire, 3 phase 3 Wire and 1 phase Network
& replaces the multiple analog panel meters.
It measures electrical parameters like AC Voltage,
AC Current, Frequency & many more.
The instrument also has an optional limit switch
True RMS measurement
Onsite programmable
Limit Switch (Optional)
3 line 3 digits Ultra Bright LED display
Run Hour, ON Hour, Number of Interruptions
Storage of Parameters possible
Parameter Screen recall
For more details please refer datasheet.

Product Overview

RISH Delta VAF measures important electrical parameters
in 3 phase 4 wire, 3 phase 3 wire, 1 phase 2 wire
and 1 phase 3 wire (split-phase) network. I
True RMS Measurement
3 Line, 4 Digit Ultra-bright LED display
Reliable and accurate measurement
Wide-range AC / DC auxiliary power supply
On site programmable PT/CT ratios
Limit Output (Optional)
MODBUS (RS485) Output (Optional)
Display of minimum and maximum values
Password-protected setup mode
Low back depth-27mm
For more details please refer datasheet.

Product Overview

Single meter measures energy consumption of four
independent loads connected to one Voltage source
Event Logging
Data Logging
Load Profile Analysis
Direct Remote Access (optional)
Parameter Screen recall
4 - line 8 digit Ultra-bright LED Display
Reverse Locking
Onsite Configuration
Relay Functions
Enclosure Protection for dust and water
Compliance to International Safety standards
For more details please refer datasheet.

Product Overview

RISH EM series measures important electrical parameters
in 3 phase and single phase Network & replaces
the multiple analog panel meters. It measures electrical
parameters like Active/Reactive/Apparent energy,power
Energy billing
Electrical load monitoring
Sub-metering
Genset, Test Benches and Laboratories
True RMS measurement:
Measures distorted waveform up to 15th Harmonic.
For more details please refer datasheet.

Product Overview

RISH EM 2340DS is Dual Source Energy Meter
which measures important electrical parameters
of Utility and Generator in 3 phase and single phase
network & replaces the multiple analog panel meters.
This energy meter is on-site programmable and can
measure more than 65 parameters including
Active/Reactive/Apparent energy,Power,Total
Harmonic Distortion (THD) measurement among others.
True RMS measurement
Energy as per IEC 62053
Onsite programmable
Direct remote access(Optional)
Limit (Alarm) or Pulse Relay Output(Optional)
Configurable Error Diagnosis Mode
For more details please refer datasheet.

Product Overview

RISH LM1340 measures important electrical parameters
in 3 phase 4wire,3 phase 3wire and 1phase 2wire Network.
It displays many parameters at a glance.
It measures electrical parameters like
Active/Reactive/ Apparent energy and all basic parameter.
The instrument has two optional digital outputs available
as pulse or alarm with programmable pulse duration and width.
This instrument also has two optional digital inputs for
monitoring the external contact status, pulse counting
and/or energy accumulation according to tariff.
Complaince of IEC 61557-12
Energy Measurement as per IEC 62053-22 / 23
Load Health Monitoring OV,UV,OC,UF,Unb. V/I, PF, PR
For more details please refer datasheet.

Product Overview

The RISH ML 1400 is a multifunction power meter
that can monitor and measure electrical parameters.
It has an accuracy class of 0.5 and can be used
for Class 1 or Class 0.5s applications.
Multiple circuit monitoring
Plug and play current transformer
Health monitoring of three phase load
Residual current monitoring and tripping
Prepaid tariff based tripping
Quick, easy, and error free current connections
Measures real time electrical parameters
Pulse output which can be used to drive an external
For more details please refer datasheet.

Product Overview

RISH ED1100 is a modern Energy Meter
designed for intended use in residential,
commercial and light industrial Electrical Energy Metering.
DIN Mounted Energy meter-Energy measurement
as per IEC 62053-21,23,IEC 61557-12,EN 50470-3 Class B
Direct Connected Energy meter with self powered
On display indication-Digital Input/Output
Pulse outputs configurable for
Import/Export Energy measurement
Digital Inputs–Tariff Energy Accumulation·
Optional SO Pulse output for energy
application along with 1 Digital Input
For more details please refer datasheet.

Product Overview

The RISH CON-V/RISH CON-I is used to measure
and convert AC Voltage or Current input into
an proportional DC current or voltage output signal.
Output signal generated is proportional to the root
mean square value of the input Current or Voltage.
Analog Output (Single or dual)
Isolated analog output which can be set onsite
to either voltage or current output.
Programmable Input/Output
Onsite transducer can be programmed using front key
& display or through programming port or through RS 485.
For more details please refer datasheet.

Product Overview

The Rish CON-Hz transducer is used for frequency measurement.
The output signal is proportional to measured frequency
and is either load independent DC Current
or load independent DC Voltage
Fully onsite programmable input range
Available in Single or Dual output type
Onsite selectable output type.(DC current/DC voltage)
Accuracy class 0.2 ( IEC / EN 60688)
l RS 485(Modbus) Communication (Optional)
l Connection Terminal : Conventional Screw type
l Seven Segment LCD Display (Optional)
For more details please refer datasheet.

Product Overview

The Rish CON-P transducer is used to measure
and convert active,reactive,apparent power,Phase
angle & Power Factor of a Single-phase or
Three-phase AC system with balanced or unbalanced
load into a proportional load independent DC current
or voltage output signal.
Onsite selectable output type(DC current / DC voltage)
Accuracy Class 0.2 (IEC / EN 60688) for Power
On Site Configurable as Active/Reactive/Apparent Transducer
/Phase Angle/Power Factor
Seven Segment LCD Display (Optional)
For more details please refer datasheet.

Product Overview

RISH CON-M+ transducer is used to measure
and convert parameters of a single-phase or
three-phase AC system with unbalanced or
balanced load into a proportional load
independent DC current or DC voltage
output signal.
4-in-1 programmable transducer
Fully onsite programmable Input:
PT&CT ratio,Output: DC Current/Voltage
Upto 4 Isolated Analog & 2 Relay Output
True RMS and THD measurement upto 31st Harmonics
For more details please refer datasheet.

Product Overview

The RISH Ducer MXX series of multi-transducers
simultaneously measure several variables of an
electric power system and process them to produce
2 or 3 or 4 analogue output signals. 2 or 4 digital
outputs are available for signaling limits or power
metering. For two of the limit outputs up to 3
measurands can be logically combined.
For all heavy-current power system variables
Up to 6 outputs (2A + 4D or 4A + 2D or 2A or 3A
Input voltage up to 693 V (phase-to-phase)
Universal analogue outputs (programmable)
Provision for either snapping the transducer onto top
hat rails or securing it with screws to a wall or pan
For more details please refer datasheet.

Product Overview

The RISH CON-M transducer is used to measure
and convert parameter of Three-phase 3W/4W
AC power network with balanced/unbalanced system.
True RMS measurement.
4-in-1 programmable transducer
Programmable parameters through the RS-485 interface
or USB when using the free eCon configuration software
Fast and easy installation on DIN RAIL or onto a wall or
ina panel using optional screw hole bracket
Connection Terminal: Conventional Screw type
Detection and signaling of incorrect phase sequence.
For more details please refer datasheet.

Product Overview

The transducer RISH CON-CA/CV converts a sinusoidal
AC Current or AC Voltage into a load independent
DC Current or a load independent DC Voltage
proportional to the measured value.
AC Voltage/ Current input signal,sine wave.
Auxiliary Power Supply
Accept any input between 40...300 V AC/DC
Analog Output
Isolated analog output, which can be Voltage or Current.
LED Indication
LED indication for power ON.
For more details please refer datasheet.


Product Overview

Current Transformers With Transducer
for the measurement of AC current.
Rish CT Ducer a very reliable, efficient
and robust current transformer for measurement
of AC current. It provides 4 to 20 mA
Single device serves functionality of both current
transformer as well as transducer
Measurement of AC current for frequency 50/60Hz
,Provides proportional 4 - 20 mA or 0-20 mA DC output
High output load resistance up to 1000 ohm
True RMS and Average type models
For more details please refer datasheet.


Product Overview

The purpose of the RISH PI-101 is to electrically
isolate input, output and power supply.
The isolator fulfills all requirements
and regulation concerning electromagnetic
compatibility EMC and safety.
User programmable using DIP Switches
Response time < 50 msec
Accuracy Class - 0.2
Auxiliary Supply - 60-300 V AC/DC
                 - 20-40 V AC /20-60 V DC
LED  provided for status indication
For more details please refer datasheet.

Product Overview

The purpose of the RISH Ducer TV 808  is to
electrically insulate input and output signals,
respectively to amplify and/or change the signal
level or type (current or voltage) of the input signals.
252 standard input and output combinations
selected by soldered jumpers
User - specific input and /or output ranges
Isolating amplifier with one input two
electrically insulated outputs.
Power supply 24 ... 60 V DC/AC or 85 ... 230 V DC/AC
please request our data sheet TV 808 - 11 Le
For more details please refer datasheet.

Product Overview

Tap position transducer RISH CON TPT
coverts resistance to proportional
analogue output signal. The purpose of the
Tap position transducer is to convert tap position
of transformers to equivalent analogue output.
Outputs can be given as input to either
RTU or indicator or recording instrument.
Input measuring range can be programmed using
PC/Simplifies project planning and engineering
(the final range can be determined during commissioning).
Electrically isolated Dual out puts.
Tap number is programmable from 1 to 101 using software.
For more details please refer datasheet.

Product Overview

The universal transmitter RISH Ducer V 604
converts the input variable–a DC current or voltage,
or a signal from a thermocouple,resistance thermometer,
remote sensor or potentiometer – to a
proportional analogue output signal.
Input variable (temperature, variation of resistance,DC
signal) and measuring range programmed using PC /
Simplifies project planning and engineering (the final
measuring range can be determined during commissioning).
Short delivery times and low stocking levels
Electric insulation between measured variable,analogue output
signal and power supply / Safe isolation acc. to EN 61 010
For more details please refer datasheet.

Product Overview
